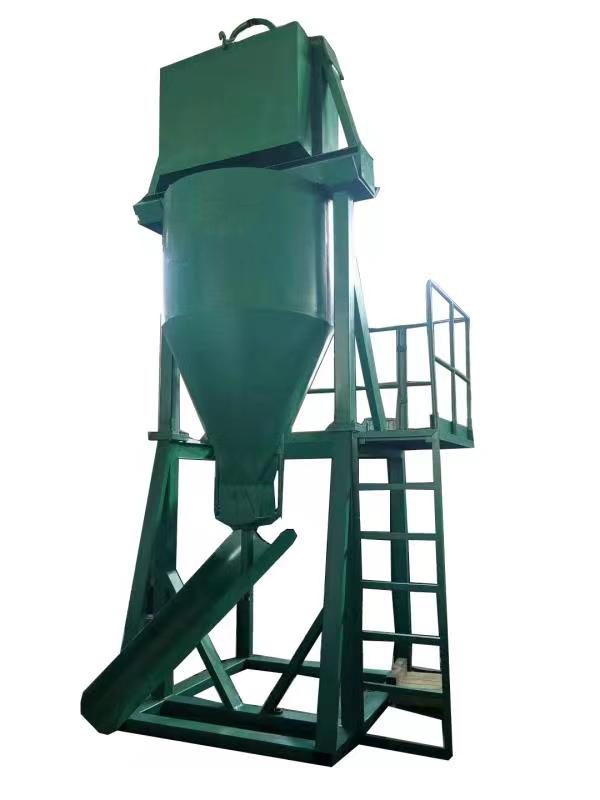

Bottom Feeder: The Core Support Equipment for Efficient Production of Industrial Furnaces
In heavy industries such as iron and steel, metallurgy, and building materials, industrial furnaces serve as key equipment for material heating, smelting, or calcination. Their production efficiency and product quality directly depend on the uniformity of material distribution inside the furnace. As the core device for controlling material distribution in the furnace, the bottom feeder, with its precise material conveying and distribution capabilities, becomes a crucial link in ensuring stable furnace operation, reducing energy consumption, and improving product quality. From small and medium-sized industrial furnaces to large blast furnaces and rotary kilns, the technical level of bottom feeders has always been closely linked to the intelligent and efficient development of industrial production.
I. Working Principle of Bottom Feeder: The "Material Distribution Center" for Precise Control
The core function of a bottom feeder is to convey raw materials (such as ore, coke, limestone, etc.) to the bottom of the industrial furnace or designated areas in a uniform and stable manner in accordance with preset process requirements. This avoids local overheating, energy waste, or product quality fluctuations caused by uneven material accumulation. Its working principle can be summarized into three major links: "Conveying - Distribution - Regulation", with the specific process as follows:
Material Conveying Link Raw materials enter the feeder’s inlet through silos, conveyors, or chutes. Some large-scale feeders are equipped with pre-screening devices to remove impurities or large chunks from the raw materials in advance, ensuring the raw material particle size meets the furnace process requirements. At this stage, the flow control valve at the inlet adjusts the raw material input in real time based on the material consumption rate inside the furnace, preventing blockages caused by excessive feeding or disruptions to production continuity due to insufficient feeding.
Material Distribution Link Raw materials entering the feeder are spatially distributed through a "distribution arm + rotating mechanism" or a "reciprocating distribution trolley". Taking the common rotary bottom feeder as an example: the distribution arm can rotate 360° around the furnace’s central axis, and the discharge port under the arm evenly spreads the raw materials on the furnace bottom according to preset distribution trajectories (such as circular, spiral, fan-shaped, etc.). For reciprocating feeders, the distribution trolley moves back and forth on the furnace bottom rails, and the opening of the discharge port is adjusted to achieve uniform material distribution in linear areas. Some high-end models also dynamically adjust the distribution trajectory and speed based on real-time data such as furnace temperature and material stock, further improving distribution accuracy.
Regulation and Feedback Link Modern bottom feeders are generally equipped with intelligent control systems. Sensors collect real-time data such as furnace temperature, material thickness, and distribution speed, and transmit the data to the control terminal. The control system automatically adjusts the feeder’s operating status according to preset process parameters; in case of abnormalities, the system promptly issues an alarm and triggers an emergency response mechanism to ensure the safe and stable operation of both the feeder and the furnace.
II. Core Structure of Bottom Feeder: The "Hardware Support" for Stable Operation
The structural design of a bottom feeder must balance three core requirements: "load-bearing capacity, operation accuracy, and wear resistance" to adapt to the harsh working environment of industrial furnaces (high temperature, high dust, and high load). Its core structure mainly includes the following parts:
1. Feeding and Preprocessing System
This system is the "first checkpoint" for raw materials entering the feeder, mainly composed of a silo, a feeder, and a screening device.
The silo is used for temporary storage of raw materials. Its inner wall is usually lined with wear-resistant plates to prevent scouring and wear from raw materials.
The feeder is responsible for uniformly conveying raw materials to the next link, and its conveying speed can be adjusted in real time via a variable-frequency motor.
The screening device filters impurities or oversized particles from the raw materials to prevent blockages in the distribution channel and ensure the smooth operation of subsequent links.
2. Distribution Execution Mechanism
As the "core working component" of the bottom feeder, it determines the accuracy and range of material distribution, and is mainly divided into two types: "rotary distribution arm" and "reciprocating distribution trolley".
Rotary Distribution Arm: Composed of a rotation drive device (e.g., gear reducer, hydraulic motor), the distribution arm body, and a discharge port. The distribution arm is usually made of high-strength steel structure and can be designed as a single-arm or multi-arm structure according to the furnace diameter, with flexible adjustment of the arm length. The discharge port is equipped with an adjustable baffle, and the baffle opening is controlled by an air cylinder or electric push rod to achieve precise control of material flow. The rotation drive device must have high torque and low speed to ensure stable rotation of the distribution arm and avoid uneven distribution caused by speed fluctuations.
Reciprocating Distribution Trolley: Composed of rails, a trolley body, and a travel drive device. Rails are laid in parallel on both sides of the furnace bottom, and the trolley moves back and forth on the rails via wheels. The travel drive device usually uses a variable-frequency motor with rack-and-pinion transmission to achieve stepless speed adjustment of the trolley. The discharge port at the bottom of the trolley automatically adjusts its opening according to the stroke position to ensure consistent material distribution in different areas.
3. Drive and Transmission System
This system provides power for the feeder and must have "high reliability and strong weather resistance". Drive methods are mainly divided into two types: "electric drive" and "hydraulic drive".
Electric drive realizes power transmission through a variable-frequency motor combined with a reducer and coupling. It has the advantages of high control accuracy and low maintenance cost, making it suitable for medium and light-load scenarios.
Hydraulic drive achieves power output through a hydraulic pump, hydraulic motor, and hydraulic cylinder. It has the characteristics of high torque and strong impact resistance, making it suitable for high-temperature, high-load heavy-duty furnace scenarios.
Transmission components (e.g., gears, chains, guide rails) are all made of wear-resistant materials and regularly coated with high-temperature grease to reduce wear and extend service life.
4. Control System and Sensors
As the "intelligent brain" of modern bottom feeders, it is mainly composed of a PLC control cabinet, a human-machine interface (HMI), and sensors.
The PLC control cabinet receives sensor data, executes control logic, and sends commands to various execution mechanisms.
The HMI displays real-time operating parameters of the feeder, allowing operators to modify process parameters or manually control equipment operation through the interface.
Sensors include temperature sensors, level sensors, speed sensors, etc., providing real-time and accurate data support for the control system to ensure closed-loop control of the distribution process.
III. Application Scenarios and Core Advantages of Bottom Feeder: The "Efficiency Accelerator" for Industrial Production
Bottom feeders are widely used in industrial furnaces in fields such as iron and steel, metallurgy, cement, and non-ferrous metals (e.g., blast furnaces, rotary kilns, shaft furnaces, roasting furnaces). Their core advantages are reflected in three aspects: "improving production efficiency, ensuring product quality, and reducing energy and cost consumption".
1. Application Scenarios: Adapting to Process Requirements of Different Furnaces
Blast Furnaces in the Iron and Steel Industry: During blast furnace ironmaking, the bottom feeder distributes coke and iron ore evenly on the blast furnace bottom according to a preset ratio, forming an alternating "coke layer - ore layer" charge column structure. A uniform charge column ensures smooth gas flow, avoids heat waste caused by local gas short circuits, improves the reduction efficiency of iron ore, and reduces the coke ratio (the ratio of coke to iron ore consumption).
Rotary Kilns in the Cement Industry: During cement clinker calcination, the bottom feeder conveys raw meal (a mixture of limestone, clay, and iron powder) evenly to the feed end of the rotary kiln. This ensures that the raw meal fully contacts the high-temperature flame in the kiln, avoiding "over-burning" or "under-burning" caused by raw meal accumulation, and ensuring the strength and stability of cement clinker.
Roasting Furnaces in the Non-Ferrous Metal Industry: During the roasting of non-ferrous metals (e.g., copper, zinc), the bottom feeder evenly spreads concentrate (ore with high metal content) on the grate of the roasting furnace. This ensures that the concentrate fully reacts with air to achieve desulfurization (removal of sulfur from the concentrate) and oxidation, providing qualified roasted ore for subsequent smelting.
2. Core Advantages: Reducing Costs and Increasing Efficiency for Industrial Production
Improving Distribution Accuracy and Ensuring Product Quality: Through intelligent control systems and high-precision execution mechanisms, bottom feeders can control the unevenness of material distribution within 5%, avoiding fluctuations in local process parameters caused by uneven material accumulation and significantly improving product qualification rates (e.g., the qualification rate of steel in the iron and steel industry, and the qualification rate of clinker in the cement industry).
Reducing Energy and Raw Material Consumption: Uniform material distribution ensures full contact between heat and raw materials in the furnace, reducing heat waste (e.g., blast furnace gas utilization rate can be increased by 3%-5%). At the same time, precise distribution avoids excessive local raw materials, reducing raw material consumption (e.g., raw meal consumption in the cement industry can be reduced by 2%-3%) and saving production costs for enterprises.
Extending Equipment Life and Reducing Maintenance Costs: The core components of bottom feeders are made of wear-resistant and high-temperature-resistant materials, and are equipped with complete lubrication and protection systems, enabling adaptation to the harsh environment of industrial furnaces. The average mean time between failures (MTBF) of the equipment can reach more than 8,000 hours, reducing the number of shutdowns for maintenance and lowering maintenance costs.
Enabling Intelligent Production and Reducing Manual Intervention: Modern bottom feeders can seamlessly connect with an enterprise’s MES (Manufacturing Execution System) or DCS (Distributed Control System), realizing real-time collection of production data and remote control. This reduces manual operations (e.g., traditional manual distribution requires 3-4 people, while intelligent feeders only need 1 person for monitoring), lowering labor costs and operational risks.
IV. Technological Development Trends of Bottom Feeders
1. Further Improvement of Intelligence Level
Future bottom feeders will integrate new technologies such as the Internet of Things (IoT), Artificial Intelligence (AI), and Digital Twin:
IoT technology will realize interconnection between equipment and equipment, as well as between equipment and systems, enabling real-time sharing of data such as furnace temperature, material composition, and distribution parameters.
AI algorithms (e.g., deep learning, reinforcement learning) will analyze historical data to automatically optimize distribution trajectories and process parameters, achieving "self-learning and self-adjusting" adaptive control (e.g., automatically adjusting distribution speed according to changes in raw material composition).
Digital Twin technology will build a virtual model of the bottom feeder to simulate its operating status under different working conditions, predict equipment failures in advance (e.g., gear wear, bearing damage), and realize "predictive maintenance", further improving equipment reliability and operational efficiency.
2. Green Design Becoming Mainstream
(Note: The original text does not elaborate on "green design" content; the translation retains the original structure to maintain consistency.)
3. Enhanced Large-Scale and Customized Adaptability
With the trend of industrial furnaces becoming larger (e.g., blast furnace volume has exceeded 6,000 m³, and rotary kiln diameter has exceeded 6 m), bottom feeders need to have greater load-bearing capacity and distribution range:
Future large-scale feeders will adopt modular design, allowing flexible splicing of distribution arms or extension of rail lengths according to furnace size.
Meanwhile, to meet the special needs of different industries and processes (e.g., distribution of high-temperature molten materials, distribution of corrosive materials), feeders will provide customized solutions (e.g., using high-temperature alloy materials, corrosion-resistant coatings) to further expand application scenarios.
Conclusion
As the "core support equipment" for industrial furnace production, the technical level of bottom feeders is directly related to the efficiency, quality, and cost of industrial production. From traditional mechanical transmission to modern intelligent control, and from a single distribution function to multi-functional integration of "precise distribution + intelligent regulation + green energy conservation", the development of bottom feeders has always been in sync with industrial progress. In the future, with continuous breakthroughs in intelligent and green technologies, bottom feeders will continue to play the role of "efficiency accelerator" and "quality guardian", providing solid support for the high-quality development of the heavy industry and the achievement of the "dual carbon" goals.
