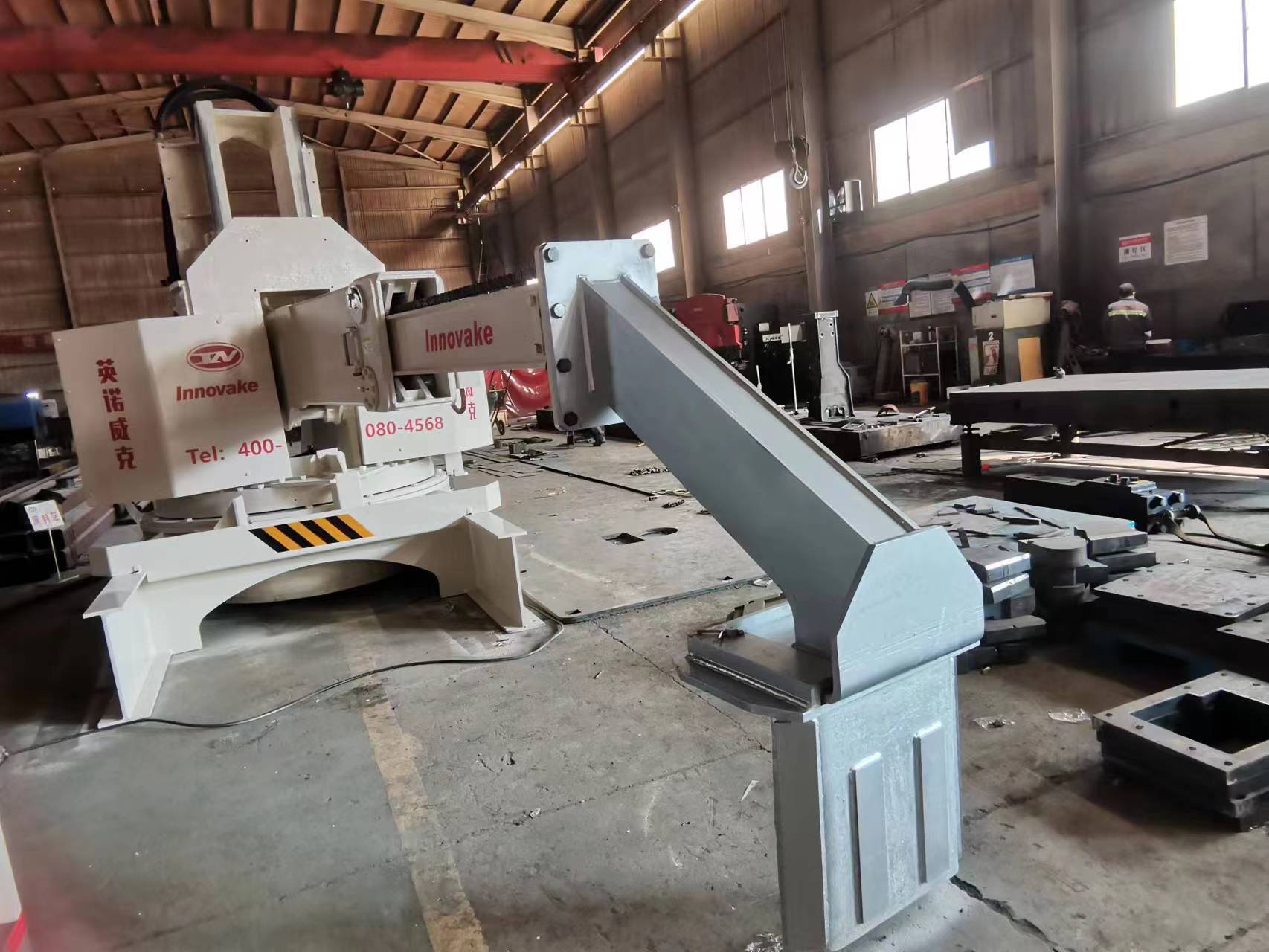

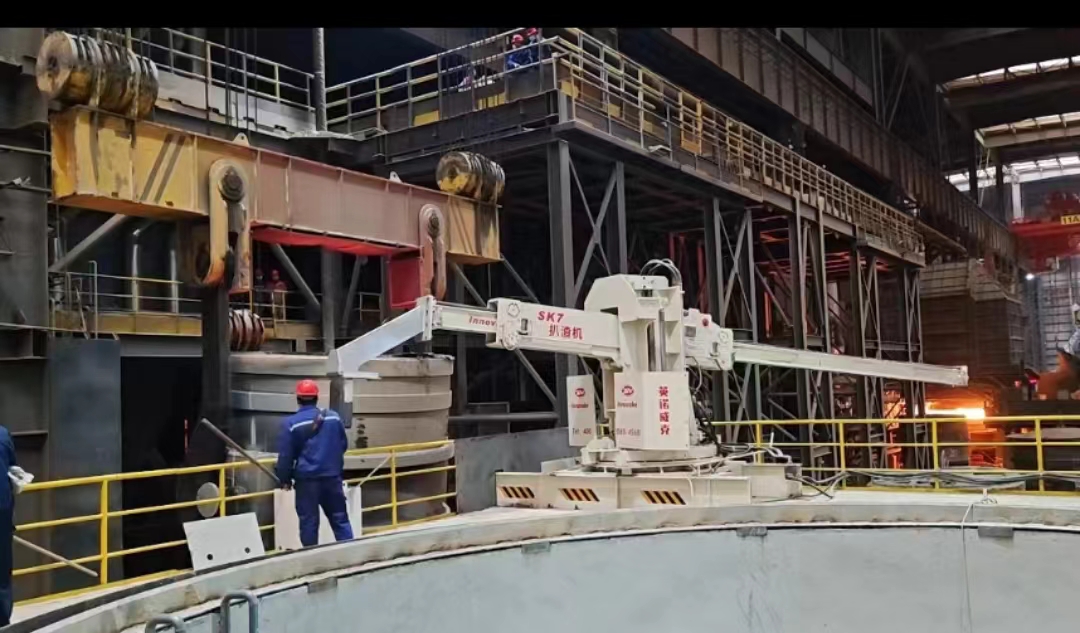

Main Machine Weight: 11,000 Kg: The stable machine structure provides a solid foundation for equipment operation. With a main machine weight of 11 tons, it ensures stability during slag skimming operations, effectively resisting hot metal impact and operational vibration, preventing equipment deviation, guaranteeing operational accuracy, and extending the service life of the equipment.
Slag Skimming Telescopic Stroke: 6 m: The ultra-long telescopic stroke endows the equipment with a wider operating coverage. It can adapt to hot metal ladles of different specifications, enabling full-range slag skimming without frequent adjustments to the equipment position. This significantly improves operational efficiency and reduces auxiliary operation time.
Slag Skimming Arm Lifting Stroke: 1 m: The flexible lifting adjustment function meets slag skimming needs at different depths. The position of the slag skimming arm can be precisely adjusted according to the thickness of the slag layer in the hot metal ladle and the height of the hot metal surface, ensuring thorough slag skimming and preventing residual slag from affecting the desulfurization effect.
Slag Skimming Arm Tilt Angle (7° Upward, 3° Downward): The scientific tilt angle design balances operational flexibility and safety. A 7° upward tilt facilitates storage and maintenance when the equipment is idle, while a 3° downward tilt ensures perfect fit with the bottom of the hot metal ladle during slag skimming, improving slag skimming cleanliness and avoiding collisions with the ladle wall.
Main Machine Dimensions: 11.5 m (Length) × 2.91 m (Width) × 3.12 m (Height): The reasonable layout of the machine ensures both equipment performance and site adaptability. The narrow and long structure allows flexible deployment in metallurgical workshops, enabling efficient coordination with other production equipment without occupying excessive operating space.
High-Strength Structural Components: The core components of the equipment are made of high-strength steel. The slag skimming arm undergoes a special heat treatment process, giving it excellent wear resistance and high-temperature resistance. This allows the equipment to adapt to the harsh operating environment of high temperature and high corrosion inside the hot metal ladle, reducing component wear and lowering maintenance costs.
Efficient Hydraulic Drive System: The equipment is equipped with a high-efficiency hydraulic drive device, which delivers stable and powerful power output. It can precisely control the telescoping, lifting, and tilting movements of the slag skimming arm, ensuring rapid operational response and high control accuracy. This enables automated or semi-automated operations, reducing manual intervention and improving operational efficiency and safety.
Comprehensive Safety Protection: The equipment is fitted with complete safety protection devices, including overload protection and limit protection. These effectively avoid operational risks and ensure the safety of both the equipment and operators.
It can quickly and efficiently remove sulfur elements and impurity slag from hot metal, significantly improving the purity of hot metal. This lays a solid foundation for subsequent processes such as converter smelting and continuous casting.
It helps reduce smelting energy consumption and alloy consumption, while enhancing key performance indicators of final steel products, such as strength and toughness.
