Tap Hole Drilling and Resleeving Machines for Converters: Technological Advancements and Industrial Applications
Introduction
In the realm of modern steelmaking, the efficiency and reliability of converter operations directly impact overall productivity and cost-effectiveness. Central to these operations is the tap hole, a critical component that facilitates the controlled flow of molten steel from the converter to the ladle. The tap hole endures extreme conditions, including temperatures exceeding 1640°C, mechanical erosion from high-velocity steel flow, and chemical attack from molten slag and reactive elements. To maintain optimal performance and extend tap hole longevity, specialized equipment known as tap hole drilling and resleeving machines have become indispensable in steel plant operations. This article explores the technological advancements, operational principles, and industrial applications of these specialized machines, highlighting their role in enhancing converter productivity and reducing maintenance downtime.
Operational Challenges and Machine Requirements
The tap hole serves as the critical interface between the converter vessel and subsequent steel processing stages. Its performance is governed by a complex interplay of factors including geometric dimensions, material properties, and operating conditions. Traditional tap hole maintenance faced significant challenges, including short service life (typically 200 heats), high labor intensity, and prolonged 更换时间 averaging 90 minutes per operation. These issues not only disrupted production schedules but also increased operational costs due to frequent shutdowns and material replacements.
Modern tap hole drilling and resleeving machines address these challenges through specialized design features tailored to the harsh converter environment. Key operational requirements include high torque output (4000–9000 Nm) to penetrate refractory materials, precise positioning capabilities to ensure hole straightness, and robust construction to withstand thermal cycling and mechanical stress. Power requirements range from 76 to 150 kW, reflecting the demanding nature of drilling through hardened refractory linings while maintaining dimensional accuracy.
Machine Configurations and Technical Specifications

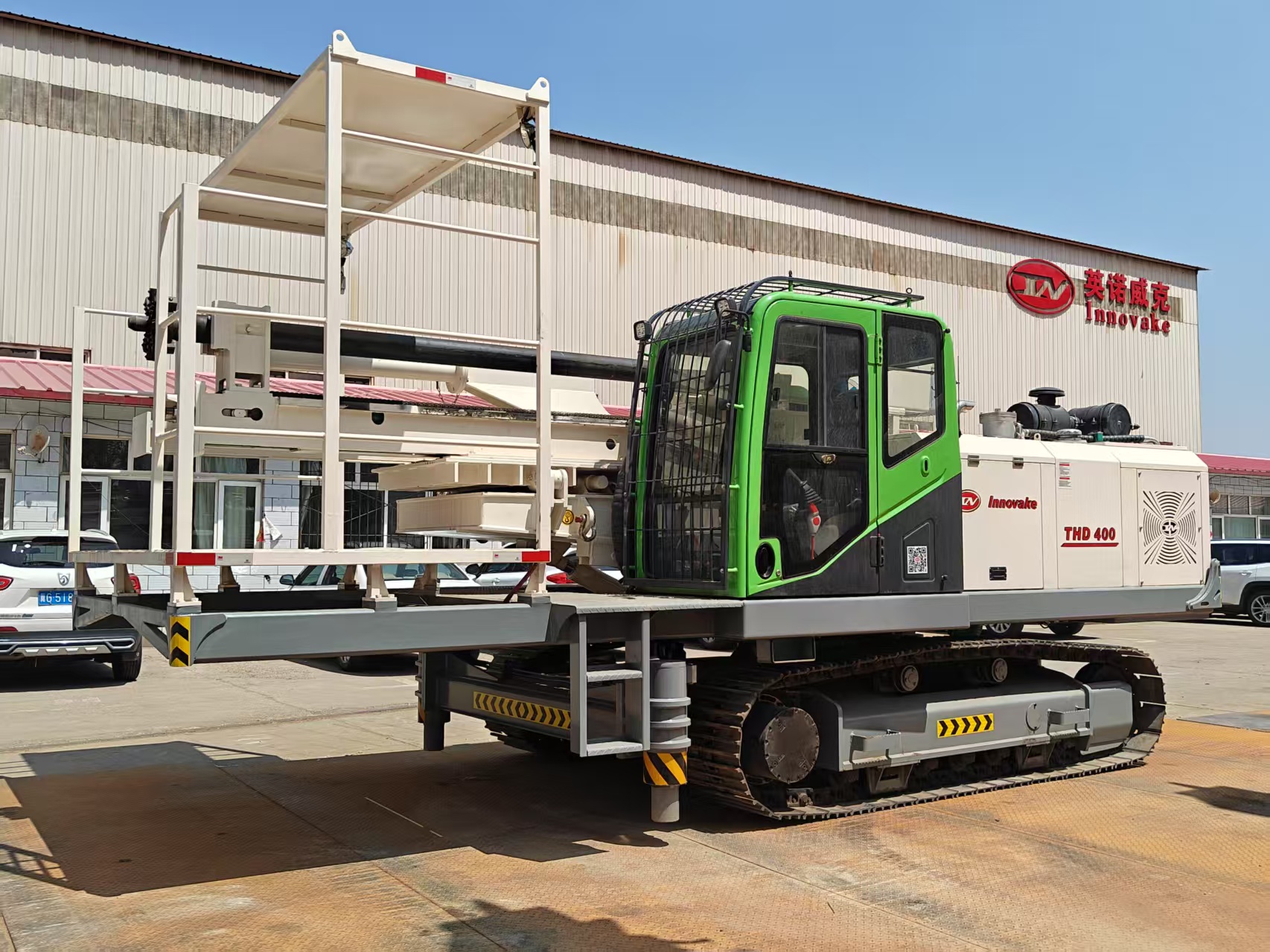

Leading manufacturers such as Zetko and DHM Group offer a range of tap hole drilling and resleeving machines designed to meet diverse operational needs. These machines can be categorized based on their operational position (charging side or tapping side) and mobility configuration (tyre or crawler-mounted). Table 1 provides an overview of common machine specifications:
| | | | | |
| | | | | Converter tap hole drilling |
| | | | | Dual-head drilling operations |
| | | | | |
| | | | | |

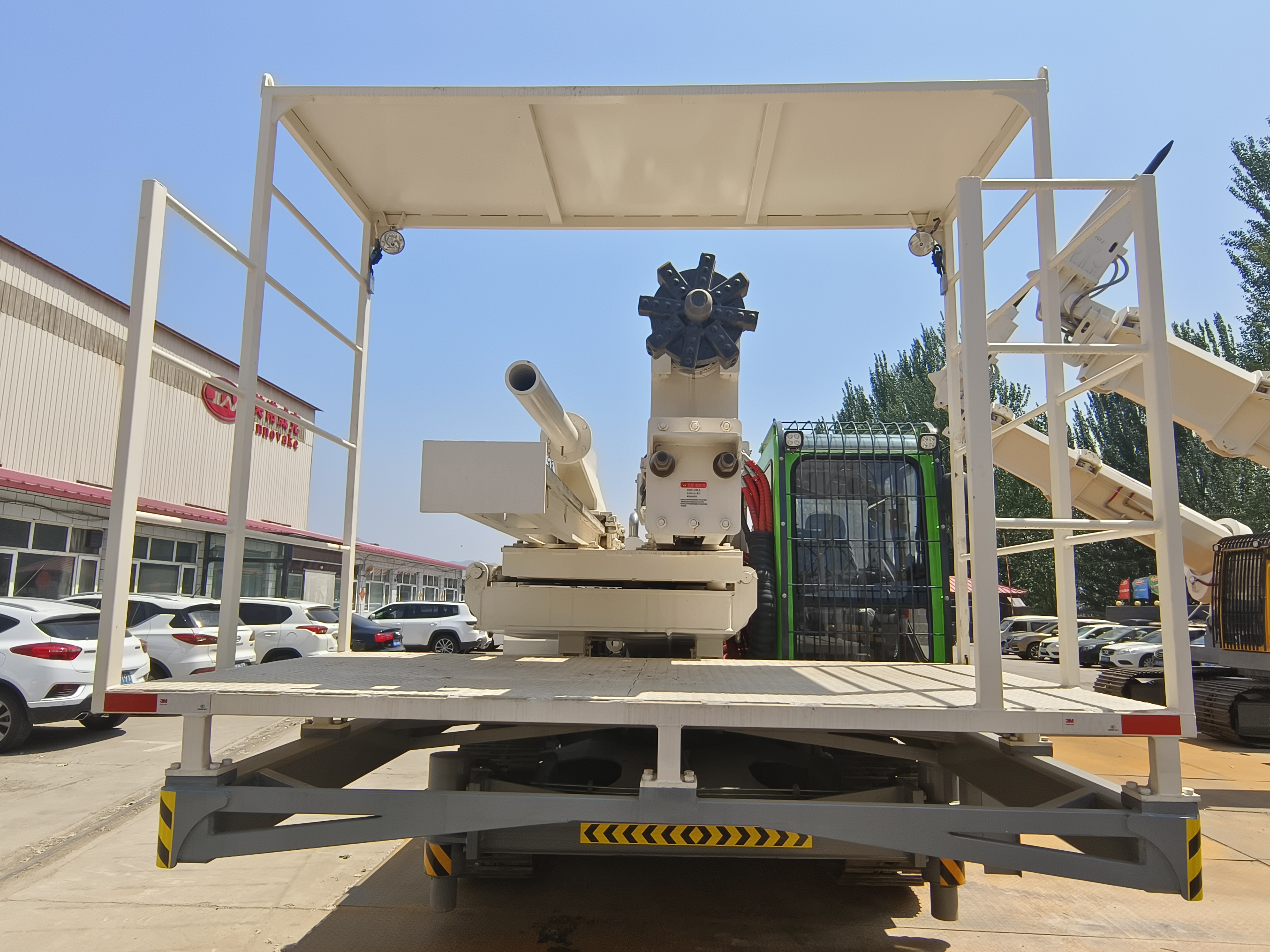

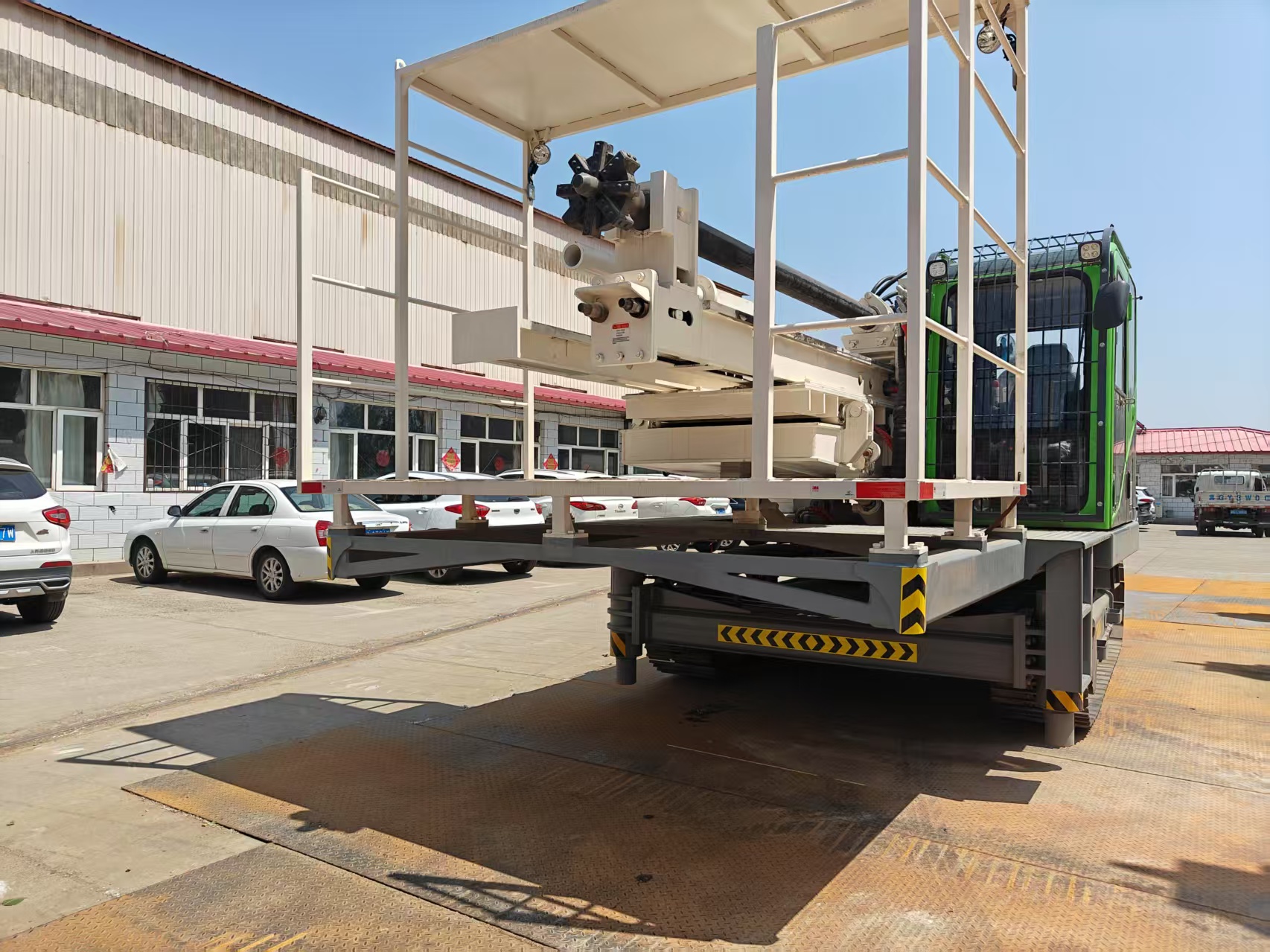

Advanced models incorporate telescopic booms with 1–3 meter stroke lengths, enabling precise positioning even in confined converter environments. The latest generation of machines offers flexible power options (diesel or electrical) and multiple operation modes (cabin-controlled, remote, or combined), enhancing adaptability to varying plant layouts and safety requirements.
A key technological advancement is the development of quick-coupler systems, allowing tool interchange within 5 minutes and reducing equipment downtime significantly. These systems enable seamless transition between drilling and resleeving operations using specialized attachments compatible with existing telescopic boom machinery.
Drilling and Resleeving Processes
The tap hole maintenance cycle consists of two primary stages: drilling and resleeving. Modern machines optimize both processes to minimize operational interruptions.
Drilling Operations
Drilling operations remove worn refractory material to prepare for sleeve insertion. Advanced machines achieve drilling times of 5–10 minutes under optimal conditions, though this can extend to 15–20 minutes depending on refractory hardness and tap hole length. Drill bits are specially designed based on application needs, with options including solid drill bits, TC (tungsten carbide) bits, and fine cutter drills to handle different refractory compositions.
Precision drilling is critical to tap hole performance. DHM Group's HPP-1200 "Titan" series incorporates fully automatic control modes with taphole length measurements, ensuring perfectly straight channels that minimize subsequent erosion. This precision reduces stress concentrations in the refractory lining, extending service life between maintenance cycles.
Resleeving Technology
Resleeving involves inserting new refractory sleeves into the prepared tap hole. Modern machines accommodate various sleeve designs, including cylindrical, segmental, monolithic, and conical configurations with block inserts, allowing customization to specific converter requirements. The resleeving process must ensure proper fit and alignment to prevent steel leakage and minimize erosion points.
Innovative sleeve designs, such as the split transformation developed by Chinese steel producers, incorporate 碗状台阶 (bowl-shaped steps) between the primary brick and inner 水口，eliminating direct contact and reducing 穿钢风险 (steel penetration risk). This design allows targeted replacement of worn components rather than complete tap hole renewal, further optimizing maintenance efficiency.
Performance Optimization and Maintenance Strategies
Effective tap hole management requires integration of machine capabilities with comprehensive maintenance strategies. Key optimization measures include:
Refractory Material Improvements: Development of high-performance dolomite and magnesia-carbon refractories with enhanced resistance to chemical attack and thermal shock. Specialized treatments, such as surface sealing and thermal processing, reduce moisture absorption and improve dimensional stability.
Process Parameter Control: Optimization of slag composition to reduce FeO content, minimizing chemical erosion of tap hole refractories. Implementation of automatic steelmaking models ensures consistent endpoint conditions, reducing variability in tap hole wear patterns.
Proactive Maintenance Scheduling: Utilization of machine data to establish optimal maintenance intervals, balancing tap hole wear against production requirements. Strategic scheduling during planned downtime reduces unplanned interruptions.
Dimensional Optimization: Tailoring tap hole diameter across converter campaigns (130mm for initial stages, 逐步减小 to 110mm) to maintain optimal flow rates while minimizing erosion rates. This approach, validated by Japanese steelmakers, balances 出钢时间 (tapping time) against refractory durability.
These measures have demonstrated significant benefits in industrial applications. For example, Shandong Shiheng Special Steel increased tap hole service life from 200–300 heats to 700–800 heats through comprehensive optimization of machine operations and refractory management. Similarly, Laiwu Steel reduced annual tap hole replacements by 23 per furnace while cutting maintenance downtime by 2070 minutes annually.
Safety and Ergonomic Considerations
Modern tap hole drilling and resleeving machines incorporate numerous safety features to protect operators in the hazardous converter environment. Remote operation capabilities reduce exposure to high temperatures, fumes, and potential splashing hazards. Enclosed cabins with climate control systems provide protected workspaces while maintaining operational visibility.
Ergonomic design elements include intuitive control interfaces, reduced vibration transmission, and automated positioning systems that minimize manual handling requirements. These features not only enhance operator safety but also reduce fatigue-related errors during
Critical maintenance operations.
Machine safety systems include emergency stop protocols, pressure monitoring, and fault detection mechanisms that prevent operation under unsafe conditions. Regular maintenance and inspection protocols, supported by manufacturer technical assistance programs, ensure ongoing reliability of safety-critical components.
The evolution of tap hole drilling and resleeving machines continues to be driven by the steel industry's pursuit of higher productivity, lower costs, and improved safety. Key emerging trends include:
Digitalization and Smart Monitoring: Integration of IoT sensors for real-time monitoring of drill performance, vibration patterns, and energy consumption. This data enables predictive maintenance and process optimization through machine learning algorithms.
Increased Automation: Development of fully autonomous drilling and resleeving systems that can operate without continuous human supervision, further improving safety and consistency.
Advanced Materials: Application of new wear-resistant materials for drill bits and machine components, extending service intervals and reducing maintenance requirements.
Energy Efficiency: Development of hybrid power systems and energy recovery technologies to reduce the environmental impact of tap hole maintenance operations.
Modular Design: Enhanced modular machine architectures that enable faster customization for specific converter configurations and operational requirements.
These advancements promise to further enhance the role of tap hole drilling and resleeving machines as critical enablers of efficient, cost-effective converter operations in the global steel industry.
Conclusion
Tap hole drilling and resleeving machines have evolved from simple maintenance tools to sophisticated systems that play a pivotal role in modern steelmaking operations. Through continuous technological advancements, these machines now deliver unprecedented levels of precision, efficiency, and reliability, directly contributing to improved converter productivity and reduced operational costs.
The integration of advanced control systems, ergonomic design features, and versatile configurations has enabled steel producers to significantly extend tap hole service life while minimizing maintenance downtime. Case studies from around the world demonstrate that optimized tap hole management can increase service life by 100–300%, reduce 更换次数 by 20–40%, and generate substantial production gains.
As the steel industry continues to pursue sustainable and efficient production practices, tap hole drilling and resleeving machines will undoubtedly play an increasingly important role. Future developments in automation, digitalization, and material science promise to further enhance these machines' capabilities, ensuring their continued contribution to the evolution of modern steelmaking technology.
