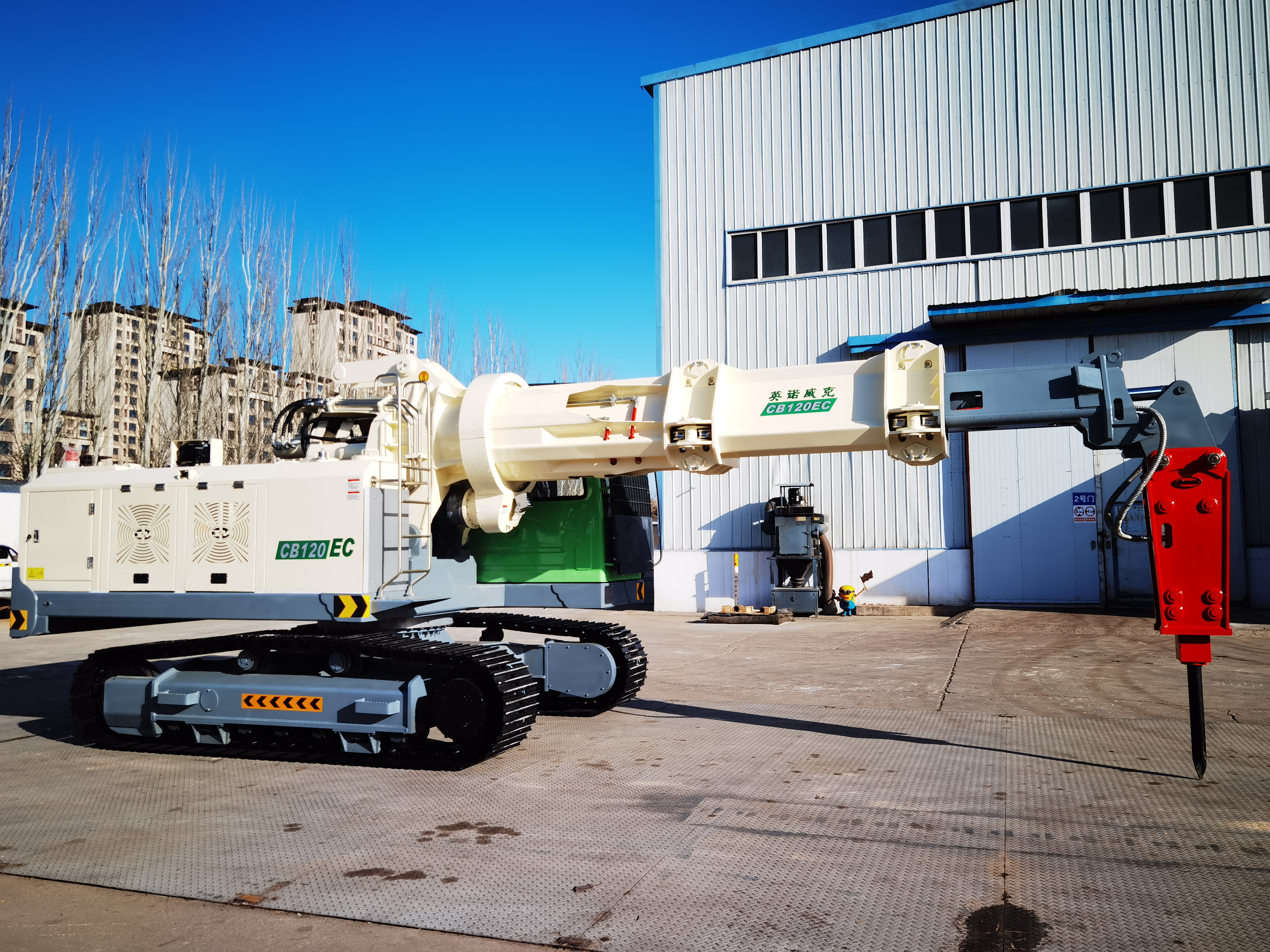

CB120EC New Energy Furnace Demolition Machine - Product Introduction
I. Product Positioning: An Innovator in Metallurgical Demolition Driven by New Energy
The CB120EC New Energy Furnace Demolition Machine is a fully hydraulic telescopic demolition equipment tailor - made for the iron and steel, and metallurgical industries. It features a stable 26,000 - kg (26 - ton class) body and an ultra - long telescopic stroke of 3,700 mm as its core highlights. Integrating pure electric power technology and modular structure design, it completely transforms the high - pollution and high - energy consumption operation mode of traditional fuel - powered furnace demolition machines. Focusing on core scenarios such as converter lining removal, molten steel ladle cleaning, and tapping hole reaming, this machine achieves a dual breakthrough in environmental performance and operation efficiency, making it an essential core equipment for green production in modern steel plants.
II. Core Parameters and Technical Advantages: Accurately Matching Industrial Needs
1. Analysis of Key Parameters
Total Machine Weight: 26,000 kg: The body structure is welded with high - strength and high - quality steel plates. It has a balanced weight distribution and a small ground contact pressure, which not only ensures operation stability under high - temperature and high - dust working conditions but also effectively reduces damage to the workshop floor. The modular design makes the body structure compact and solid with high rigidity, capable of withstanding strong impacts and vibrations during demolition operations.
Telescopic Stroke: 3,700 mm: The core telescopic arm assembly adopts an equilateral triangular structure design and is equipped with a telescopic oil cylinder to achieve smooth telescoping with an ultra - long stroke of 3,700 mm. The telescopic arm is welded with thick - walled seamless steel pipes and heat - resistant steel plates, serving both as high - pressure oil pipes and motion guide rails. It has excellent bending and torsion resistance. Combined with the roller guide device at the front end of the main arm, it ensures straightness and accuracy during operation, easily meeting the complex spatial operation needs within a large working radius.
2. Core of New Energy Power
This machine is equipped with a large - capacity power battery pack from CATL (Contemporary Amperex Technology Co., Limited) and a permanent magnet synchronous motor from Wanrun. It adopts a "battery pack + external mains power" dual - power supply mode, completely solving the exhaust pollution and energy consumption problems of traditional fuel - powered models. During operation, it achieves zero emissions and low noise, with low idle noise inside the machine, greatly improving the workshop operation environment. Its hourly energy consumption is low; continuous operation for 6 hours a day can complete the demolition task of 3 steel ladles. The use cost is reduced by more than 50% compared with fuel - powered models, and the battery adopts a maintenance - free design, further reducing the later operation and maintenance investment.
3. Intelligent and Efficient Operation System
The hydraulic system adopts a dual - pump confluence design, ensuring stable output of flow and pressure. Combined with the new pilot operation mode, it can automatically adjust the motor speed and hydraulic flow according to operation requirements, enabling easy operation and quick response.
It is equipped with replaceable operation tools such as hydraulic impactors, hook shovels, and reaming drills, capable of performing various operations including impact crushing, furnace and ladle demolition, tapping hole precision reaming, and furnace wall slag removal. It is suitable for the full - scenario demolition needs of 50 - 300 t steel - making furnaces and molten steel ladles.
Equipped with four intelligent temperature - controlled electric drive fan cooling systems, it can automatically adjust the speed according to the oil temperature and water temperature, ensuring the continuous and stable operation of the equipment under high - temperature working conditions and withstanding the test of harsh environments.
III. Application Scenarios and Industrial Value
The CB120EC New Energy Furnace Demolition Machine is mainly used for furnace demolition operations in the iron and steel, and metallurgical industries, specifically including key processes such as converter lining refractory material removal, molten steel ladle slag cleaning, tapping hole drilling and precision reaming, converter furnace cap opening slag removal, and magnesia carbon brick sleeve replacement assistance. Its core value is reflected in three dimensions:
Efficiency Improvement: The modular structure and fully hydraulic drive design greatly shorten the furnace demolition time, reduce the labor intensity of workers, and help steel plants improve production turnover rates.
Green and Environmental Protection: Conforming to the national "dual carbon" policy and environmental protection regulations, its zero - emission and low - noise characteristics help enterprises achieve the transformation to green production.
Safety and Reliability: The high - voltage electrical system has a high insulation protection level. The side - door openable high - voltage cut - off design and aerogel heat - insulation body protection fully ensure the safety of operators and equipment. Moreover, the three - side open design of the rear hood facilitates daily maintenance.
IV. Product Summary
With a stable 26,000 - kg body and an ultra - long 3,700 - mm telescopic stroke as its hardware support, and new energy power and an intelligent hydraulic system as its technical core, the CB120EC New Energy Furnace Demolition Machine perfectly balances environmental performance, operation efficiency, and use cost. Its modular design, multi - tool adaptation, and ability to adapt to harsh environments make it an optimal solution for equipment upgrading in the metallurgical industry, providing a solid guarantee for steel plants to achieve efficient, green, and safe production and operation.
