Full-Automatic Gunning Machine: Principles, Applications, and Evolution in Modern Industry
The term "Full-Automatic Gunning Machine" encompasses two distinct yet technologically sophisticated categories of equipment: defense-oriented automatic machine guns designed for sustained firepower, and industrial shotcreting machines engineered for high-precision material spraying. Both embody the core principle of automated cyclic operation, but their mechanisms, applications, and evolutionary paths reflect specialized engineering for divergent operational demands. This article explores the technical foundations, practical implementations, and future trajectories of both variants.
I. Technical Fundamentals: The Mechanics of Automatic Cyclic Operation
Despite serving different purposes, both types of full-automatic gunning machines rely on energy recycling and precise mechanical coordination to achieve continuous operation. Their core systems share structural parallels while adapting to unique functional requirements.
A. Automatic Machine Guns: Firepower Sustained by Propellant Energy
Automatic machine guns convert the kinetic energy of propellant gases into mechanical motion to drive the firing cycle, eliminating the need for manual reloading. Three dominant operating principles have emerged, each optimized for specific tactical scenarios :
Gas-Operated System This most widely adopted mechanism incorporates a gas port drilled into the barrel. As the projectile passes the port, a fraction of high-pressure propellant gas enters a piston chamber, driving a piston (and connected bolt assembly) rearward. This motion extracts the spent cartridge, compresses a recoil spring, and triggers the feed system to position a new round. The recoil spring then pushes the bolt forward, chambering the new round and locking the breech for the next firing cycle. Weapons like the AK-47 and FN Herstal M2HB-QCB utilize this system for its balance of fire rate (450–600 rounds per minute for the M2HB-QCB ) and reliability.
Recoil-Operated System Here, the barrel and bolt initially lock together during firing. The backward momentum generated by projectile launch drives both components rearward until a cam mechanism disengages the barrel, allowing it to return forward. The bolt continues rearward to eject the spent casing and load a new round before the recoil spring restores it to the locked position. This design excels in heavy-caliber weapons like the L111A1 (.50 BMG), where its simplicity enhances durability in harsh combat environments .
Bolt-Action Recoil System Exclusive to lightweight weapons (e.g., submachine guns), this system relies on the bolt’s inertia to seal the breech during firing. Propellant gas pressure pushes the spent cartridge case rearward, driving the bolt back to eject the casing and compress the recoil spring. While offering high fire rates and low manufacturing costs, its limited breech sealing reduces accuracy in sustained fire.
Critical supporting systems include quick-change barrel (QCB) mechanisms (enabling barrel replacement without calibration to prevent overheating ), belt or magazine feed systems (supporting 50–200 round capacities), and rate regulators (adjusting cyclic speed to balance firepower and ammunition efficiency).

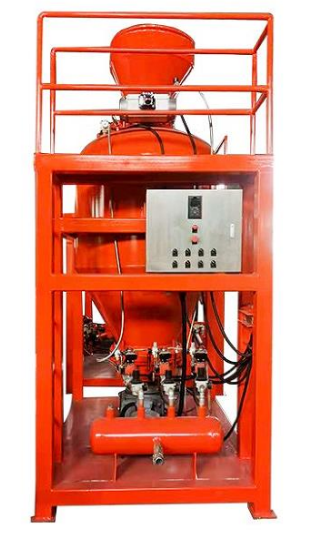

B. Industrial Full-Automatic Shotcreting Machines: Precision Spraying for Infrastructure
Industrial gunning machines automate the application of refractory materials, concrete, or coatings, with recent innovations focusing on environmental sustainability and remote operation. The wet-process remote shotcreting system exemplifies modern advancements in this field :
Core Operational Sequence
Material Preparation: Refractory aggregates (e.g., magnesium-silicon self-flowing mixtures) are blended with minimal water (≤5% by weight) using high-efficiency water reducers to maintain fluidity without compromising structural integrity.
Pneumatic Conveyance: A distributor uniformly feeds the mixture into high-pressure hoses, where compressed air propels it toward the gunning nozzle.
On-Demand Accelerator Injection: A proprietary organic acid accelerator (0.5% dosage) is introduced at the nozzle to instantly solidify the material upon contact with the target surface, reducing rebound loss to near-zero.
Remote Manipulation: The nozzle assembly (capable of 360° rotation and linear movement) and gunning vehicle are controlled remotely, enabling precise application even in high-temperature industrial environments (e.g., converter linings).
Key Performance Advantages Compared to semi-dry or dry shotcreting methods, this automatic system eliminates toxic gas emissions (avoiding resin/asphalt binders ), improves coating density by 30%, and extends service life of industrial linings by 2–3 times. Its closed-loop material control also reduces waste by 15–20%.
C. Industry: Refractory Protection for Heavy Manufacturing
Full-automatic shotcreting machines are transformative in sectors requiring high-temperature infrastructure maintenance:
Steel Production: Converter linings, which endure 1,600°C temperatures and chemical erosion, benefit from automatic wet shotcreting. The technology reduces downtime by 40% compared to manual patching and lowers refractory material consumption by 25% .
Mining & Tunneling: Automatic concrete gunning machines line tunnel walls with fiber-reinforced shotcrete, achieving uniform thickness (±2mm) and accelerating construction cycles by 30%.
Waste Incineration: Corrosion-resistant ceramic coatings applied via automatic gunning extend incinerator lifespans from 18 to 36 months, reducing operational disruptions.
Case studies from Chinese steel mills demonstrate that adopting automatic shotcreting yields an average return on investment (ROI) of 18 months through reduced maintenance costs and increased production uptime .
III. Technological Evolution: Trends Shaping the Future
Both categories of full-automatic gunning machines are evolving in response to emerging needs—with digitization, sustainability, and modularity driving innovation.
A. Defense: Smart Firepower and Lethality Enhancement
Integrated Sensing: Modern machine guns incorporate laser rangefinders and ballistics computers (e.g., the FN SCAR-H’s FN4SC optic) to adjust for wind and gravity, improving hit probability by 60% in full-automatic mode.
Materials Innovation: Titanium-alloy barrels reduce weight by 25% while maintaining heat resistance, enabling longer sustained fire. Polymer-ceramic composites in bolt assemblies enhance durability in sandy or humid environments.
Network-Centric Operation: Future systems will connect to tactical networks, sharing target data and enabling coordinated fire from multiple automatic guns to engage moving threats.
B. Industry: Green Automation and Digitalization
Eco-Friendly Formulations: Next-generation shotcreting machines use bio-based accelerators and recycled aggregates, eliminating volatile organic compound (VOC) emissions entirely .
Predictive Maintenance: IoT sensors monitor hose pressure, material flow rates, and nozzle wear, alerting operators to potential failures before they cause downtime.
3D Printing Integration: Experimental systems combine automatic gunning with 3D scanning, enabling on-site printing of custom-shaped refractory linings for irregular industrial equipment.
IV. Conclusion
Full-automatic gunning machines— precision coatings in factories—represent the convergence of mechanical ingenuity and operational necessity. for industry, the focus is on sustainability, efficiency, and remote operation. Despite their different purposes, both variants share a common thread: leveraging automation to perform repetitive, high-stakes tasks with greater precision than manual operation. As materials science, digitization, and engineering design advance, these machines will continue to redefine performance standards in their respective domains—proving that automation remains a cornerstone of modern technology, regardless of the mission.
