Gantry-type Furnace Debricking Machine

Gantry-type Furnace Debricking Machine: Revolutionizing Refractory Demolition in Metallurgical Industry

In the harsh operating environment of metallurgical plants, blast furnaces, converters, and ladles rely on refractory linings to withstand temperatures exceeding 1,600°C . Over time, these linings degrade due to thermal stress and chemical erosion, requiring periodic demolition and replacement—a process historically plagued by inefficiency, safety risks, and equipment limitations. The gantry-type furnace debricking machine has emerged as a transformative solution, merging the structural stability of gantry systems with precision demolition technology to redefine refractory maintenance standards.

1. Core Design and Operational Mechanism

The gantry-type furnace debricking machine integrates three foundational components: a modular gantry framework, a multi-degree-of-freedom working arm, and intelligent control systems—each engineered to address the unique challenges of furnace debricking.

1.1 Structural Framework: Stability in Confined Spaces

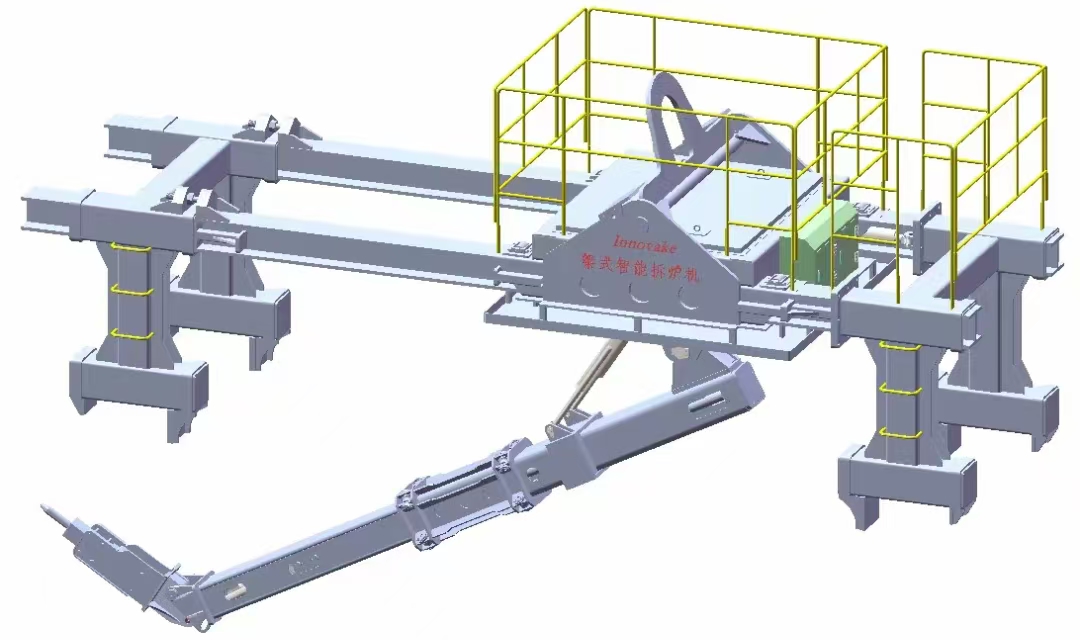

At its core, the machine features a gantry support structure (fixed or mobile) that straddles the furnace opening, providing a rigid platform for vertical and horizontal movement . Unlike traditional demolition equipment dependent on cumbersome outriggers , modern gantry designs utilize winch-operated cables anchored to furnace cooler holes, enabling centering and stabilization without radial stress points . This lightweight yet durable framework, often constructed from reinforced steel, accommodates payloads up to several tons while maintaining access to tight spaces—critical for ladles and tundishes with narrow openings .

1.2 Working Arm: Precision and Versatility

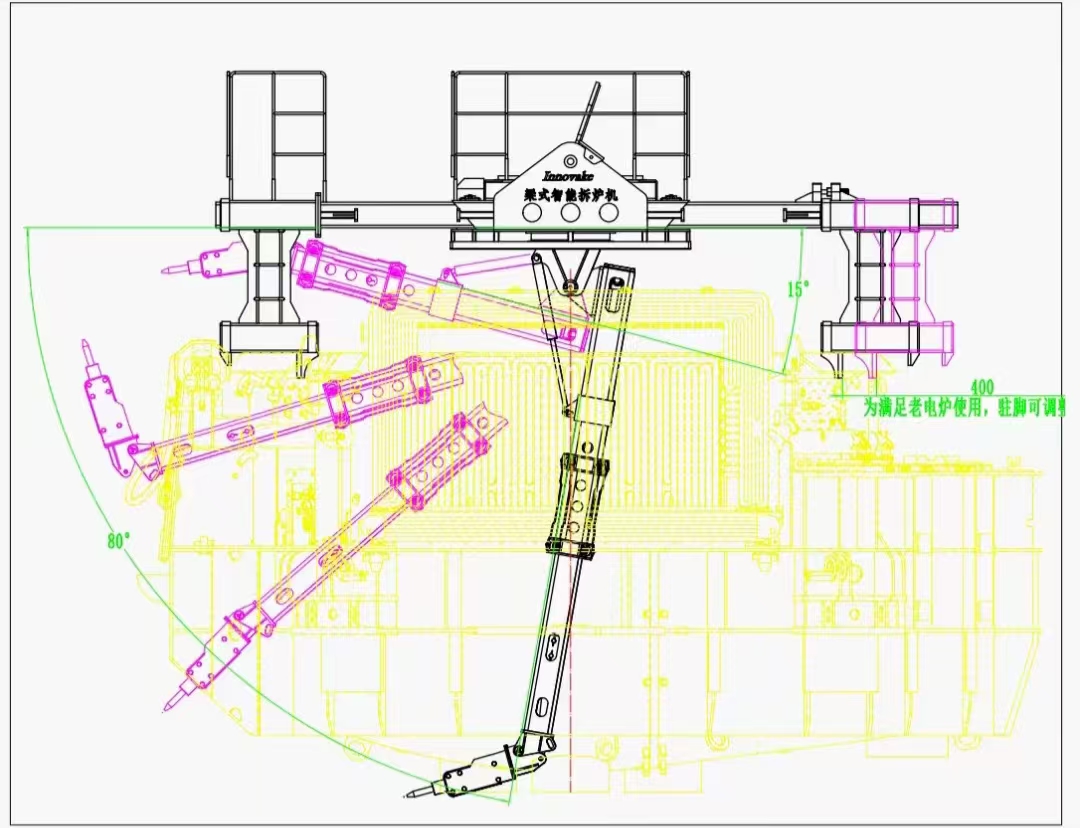

The machine’s operational heart is its telescopic, articulated working arm, equipped with 360° endless rotation and double-articulated joints . This design delivers unmatched flexibility: attachments such as hydraulic hammers, rotary drum cutters, or backhoe buckets can reach angles previously inaccessible with mini-excavators, ensuring complete refractory removal from furnace walls, tapholes, and lips . For example, the Unidachs 110 model achieves a working radius of up to 5 meters despite a compact undercarriage (1,315mm width, 1,635mm height), making it ideal for small ladles and blast furnace runners .

1.3 Power and Control Systems: Safety and Autonomy

Contemporary models prioritize operator safety and efficiency through remote control functionality, allowing personnel to manage operations from a safe distance away from heat and falling debris . Optional on-machine cameras with split-screen monitors further enhance visibility in obscured environments . Power systems are streamlined: unlike legacy machines requiring heavy-duty electric cables, modern gantry debricking machines are self-contained, relying only on diesel engines (for mobility) and compressed air (for hydraulic tools) —reducing clutter and failure risks in high-heat zones.

2. Competitive Advantages Over Traditional Methods

The gantry-type machine outperforms conventional debricking approaches (manual labor, fixed-arm excavators, or basic demolition tools) in three key areas:

2.1 Efficiency: Minimizing Downtime

Metallurgical plants lose thousands of dollars per hour of furnace downtime, making speed critical. Gantry systems streamline debricking by eliminating manual labor (which is slow and inconsistent) and reducing rework: their precise arm movements ensure complete refractory removal in a single pass . For instance, 360° rotation allows operators to access all furnace zones from a single position, cutting task time by 40–60% compared to articulated excavators .

2.2 Safety: Mitigating High-Risk Exposure

Manual debricking exposes workers to thermal burns, silica dust, and structural collapse risks. Gantry machines eliminate direct human entry into furnaces: remote operation and enclosed boom designs (protecting hydraulic components from heat and debris)  reduce injury incidents by over 90% . Additionally, the absence of outriggers lowers equipment failure risks—traditional outriggers often suffer stress fractures under radial load .

2.3 Versatility: Adapting to Variable Furnace Sizes

A defining advantage is the machine’s ability to service furnaces of varying cross-dimensions without specialized modifications . Telescopic booms adjust to working radii from 8.5m to 16m , while cable-based stabilization adapts to cylindrical or rectangular furnace geometries . This eliminates the need for multiple machines, reducing capital costs for medium-to-large plants .

3. Key Applications and Industry Impact

Gantry-type debricking machines are indispensable across metallurgical and manufacturing sectors, with primary use cases including:

Blast Furnace Maintenance: Removing degraded magnesite or dolomite linings from hearths and bosh zones, where high thermal stress demands durable equipment .

Converter and Ladle Refurbishment: Cleaning slag deposits from tapholes and lips, critical for steel quality control .

Tundish and Rotary Kiln Debricking: Accessing narrow, elongated spaces to remove silica brick linings, where compact design is essential .

In steel mills, the machines have become standard equipment: a 2024 market report notes that 78% of large-scale steel producers now use gantry systems for refractory maintenance, citing 30% lower operational costs and 50% faster turnaround times.

4. Emerging Trends and Future Innovations

The gantry debricking machine market is evolving rapidly, driven by automation and material science advancements:

AI-Driven Precision: Integration of machine learning algorithms to optimize tool pathing, using real-time sensor data to adjust for refractory hardness variations .

Collaborative Robotics: Development of cobot-compatible gantry systems, allowing human operators to assist in complex demolition tasks without safety risks .

High-Temperature Materials: Adoption of ceramic-composite boom components to withstand 2,000°C+ environments, extending service life in ultra-high-heat furnaces .

Mobile Gantry Solutions: Compact, wheeled models for on-site mobility between multiple furnaces, aligning with trends toward flexible manufacturing setups .

5.Conclusion

The gantry-type furnace debricking machine represents a paradigm shift in refractory maintenance, addressing the industry’s longstanding challenges of inefficiency, safety, and inflexibility. By combining modular gantry stability, multi-axis precision, and remote operation, it delivers tangible value—reducing downtime, mitigating risks, and adapting to diverse furnace requirements. As AI and advanced materials further enhance its capabilities, this machine will remain a cornerstone of modern metallurgical operations, enabling plants to meet growing demand while upholding safety and sustainability standards.
