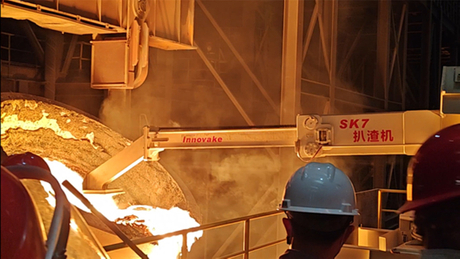

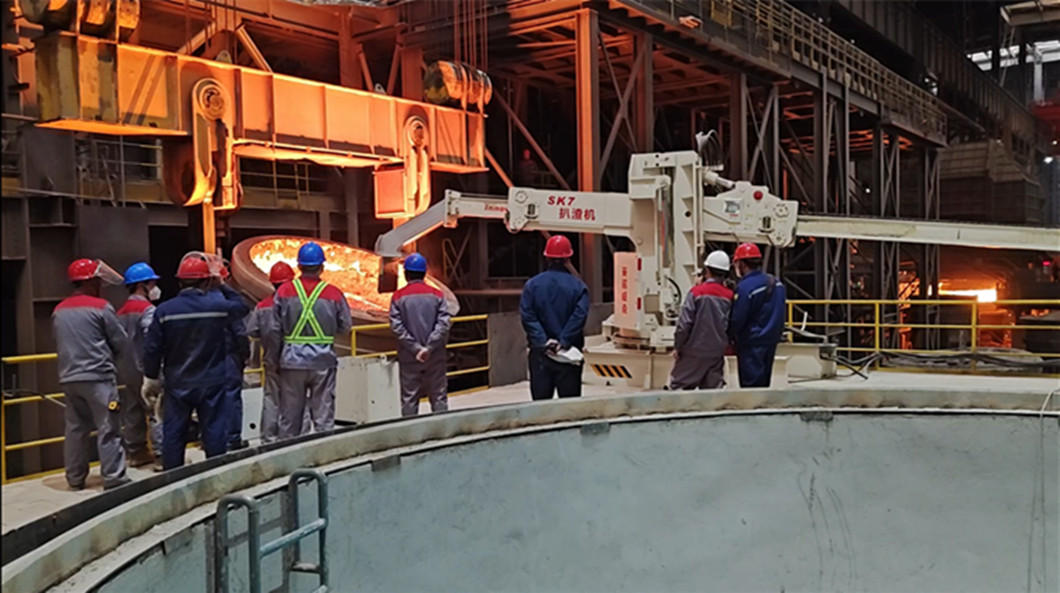

After the hot metal from blast furnace undergoes KR stirring desulfurization or magnesium injection desulfurization, a layer of high-sulfur solid desulfurization slag will form on the surface of the hot metal ladle. Equipped with a hydraulic telescopic slag raking arm and wear-resistant slag rake bucket, this machine thoroughly rakes out all desulfurization slag on the molten iron to completely separate waste slag from clean hot metal.
Core Process Purpose: Prevent Sulfur Reversion
Residual desulfurization slag carried into the converter will release sulfur back into molten steel under high-temperature smelting conditions. This will lead to excessive sulfur content in steel products, hot shortness cracking and even product scrapping. Therefore, this machine is essential pre-process equipment for the production of low-sulfur steel, high-grade pipeline steel and pressure vessel steel.
Quality Assurance
Achieve a high desulfurization slag cleaning rate (≥80%), stabilize the sulfur content index of hot metal, and guarantee the qualified quality of finished steel in the subsequent steelmaking process.
Production Cost Control
The optimized slag raking structural design reduces molten iron entrainment during slag removal, cutting the loss of valuable high-temperature hot metal carried away by waste slag and greatly lowering raw material consumption costs.
Mechanized operation replaces manual high-temperature slag raking work, reducing labor costs and labor protection expenses for high-heat posts.
Production Line Rhythm Adaptation
Complete slag raking for one ladle of hot metal efficiently, matching the production rhythm of the whole procedure from hot metal pretreatment to converter steelmaking, avoiding process blockage and production capacity stagnation.
Improved Production Safety
Adopt long-distance hydraulic operation or remote control operation to keep operators away from high-risk areas with over 1200℃ hot metal, splashing and dense flue gas, so as to prevent scalding, explosion and other safety accidents.
The whole machine adopts heavy-duty wear-resistant structure and high-temperature resistant hydraulic pipelines, which can adapt to the harsh high-temperature and dusty working conditions of steel plants and ensure stable and continuous equipment operation.
