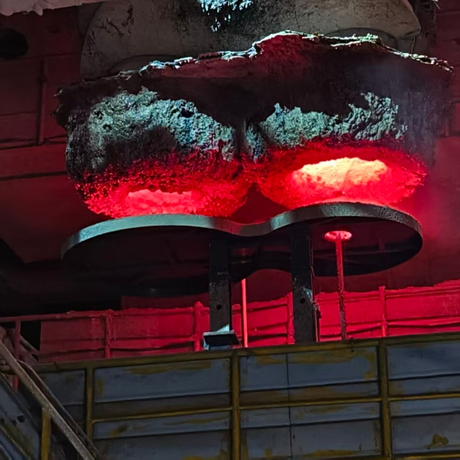

RH snorkel gunning machine is special supporting equipment for RH vacuum degassing refining furnace.
The snorkel is subject to long-term thermal shock, molten steel scouring and slag corrosion, which causes thinning, spalling and cracking of the inner and outer refractory linings. This machine sprays refractory gunning mix in hot online condition to repair both the inner and outer walls of the snorkel simultaneously and restore the thickness of the refractory lining. Offline cold repair is also available to prevent accidents such as steel breakout and nitrogen pickup, ensuring continuous and stable operation of the RH process.
✅ Hot online repair without snorkel removal or cooling waiting: Operation can be carried out during RH production intervals, greatly cutting downtime and improving RH availability.
✅ Simultaneous inner and outer gunning: Adopts double-lance structure to repair inner and outer walls at the same time with no blind zones, overcoming the limitation of conventional equipment which can only repair the outer wall.
✅ Extended snorkel service life: Maintains refractory lining steadily. The service life of snorkel can be increased by 25%~35%, substantially reducing spare part procurement cost for snorkels.
✅ Stable gunning quality and low rebound rate: Feeding speed and air pressure are adjustable. The gunning layer is uniform with high bonding strength, saving refractory gunning mix and reducing consumable waste.
✅ Improved safety and lower labor risks: Radio remote control keeps operators away from high-temperature radiant heat, replacing high-risk manual gunning. Auto mode is supported for targeted repair on heavily eroded areas.
✅ Flexible layout adaptation: Multi-axis linkage with adjustable lifting, rotation and telescoping motions. Fixed type or trolley-mounted type optional to suit RH layouts of different steel plants.
