| Model: | |
|---|---|
| Size: | |
| Weight: | |
| Quantity: | |

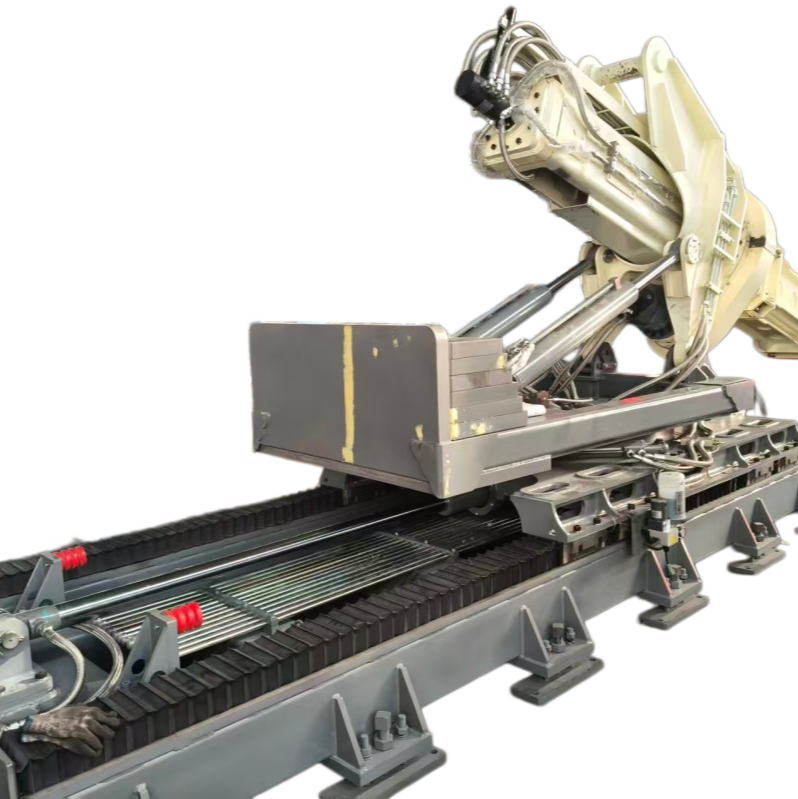

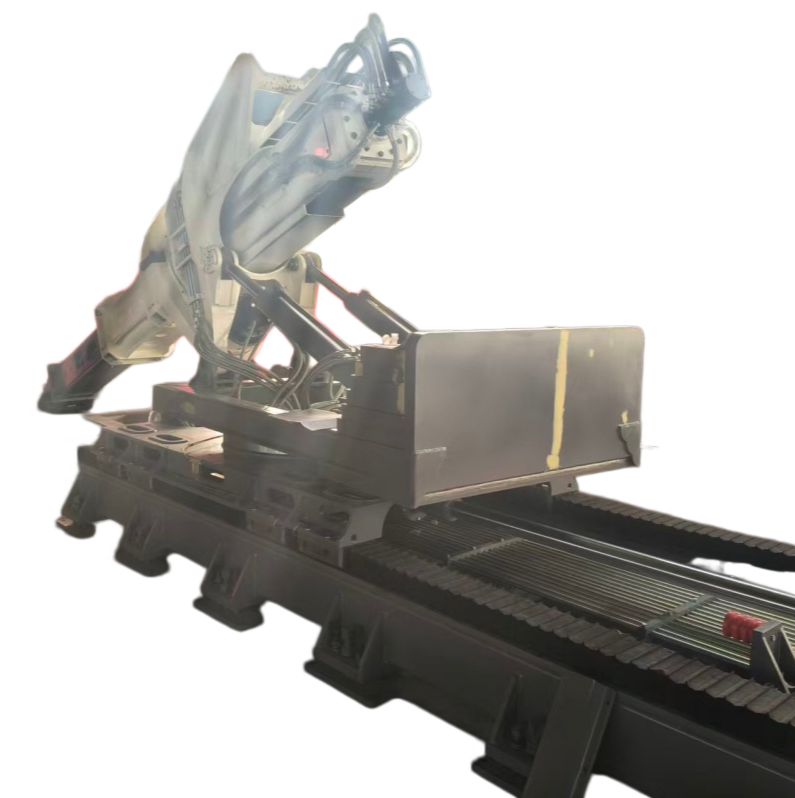

SCM75A
Innonvake
Functions:
Used for raking and cleaning high-temperature molten slag in non-ferrous metal smelting furnaces (copper, aluminum, lead, zinc, etc.).
Rail-mounted for stable operation; remote control from a long distance ensures operator safety.
Continuous slag removal improves smelting efficiency and extends furnace service life.
Suitable for converters, blast furnaces, reverberatory furnaces, flash furnaces and other high-temperature smelting scenarios.
| Maximum Working Radius | 7.5m |
| Platform Rotation Angle | Left 15° Right 15° (Adjustable limit stops) |
| Swing angle of hydraulic breaker | 0-125° |
| Hydraulic Breaker Luffing Speed | 0-20°/s |
| Working Arm Rotation Angle | ±360° |
| Working Arm Rotation Speed | 10°/s |
| Working Arm Swing Angle | Up 20° Down 30° |
| Telescopic Arm Extanding Speed | 285mm/s |
| Telescopic Arm Retracting Speed | 280mm/s |
| Telescopic Boom Stroke | 1500mm |
