Blast Furnace Slag Demolition Machine: A Key Tool in Metallurgical Industry
In the metallurgical industry, blast furnaces play a crucial role in the production of iron and steel. However, during the operation of blast furnaces, a significant amount of slag is generated. Slag is a by - product formed when impurities in the iron ore combine with flux materials such as limestone. This slag not only accumulates in the furnace but also adheres to the furnace walls and other components, which can affect the normal operation of the blast furnace and reduce its service life. To address this issue, blast furnace slag demolition machines have been developed and widely used.
1. Working Principles of Blast Furnace Slag Demolition Machines
1.1 Mechanical Impact Principle
Many slag demolition machines operate based on the mechanical impact principle. These machines are equipped with powerful hammers or breakers. For example, hydraulic hammers are commonly used. High - pressure hydraulic oil is used to drive a piston, which accelerates a hammer head. When the hammer head strikes the slag, the high - speed impact force can break the slag into smaller pieces. The impact energy can be adjusted according to the hardness and thickness of the slag. A larger impact energy is required for thick and hard slag layers. This mechanical impact method is straightforward and effective, and it can quickly remove large - scale slag accumulations.
1.2 Thermal - Mechanical Combined Principle
Some advanced slag demolition machines adopt a thermal - mechanical combined approach. First, a heating device is used to heat the slag. Heating the slag can change its physical properties, making it more brittle. For instance, electric heating elements or gas - fired burners can be used to raise the temperature of the slag. After the slag becomes brittle due to heating, mechanical demolition methods such as mechanical impact or shearing are then employed. This combined method can reduce the energy consumption required for slag removal. Since the slag is more easily broken after heating, the mechanical force needed for demolition is reduced, and at the same time, it can improve the efficiency of slag removal.
2. Types of Blast Furnace Slag Demolition Machines
2.1 Hand - Held Slag Demolition Tools
In the past, hand - held slag demolition tools were commonly used in small - scale operations or in situations where access was limited. These tools, such as hand - held pneumatic breakers, were lightweight and easy to operate. Workers could directly use them to break the slag. However, they also had significant drawbacks. Operators were exposed to high heat and the strong vibrations of the tools, which could cause serious physical harm, such as back injuries and hand - arm vibration syndrome. Moreover, the efficiency of hand - held tools was relatively low, and it was difficult to deal with large - scale and thick slag layers.
2.2 Mobile Demolition Machines

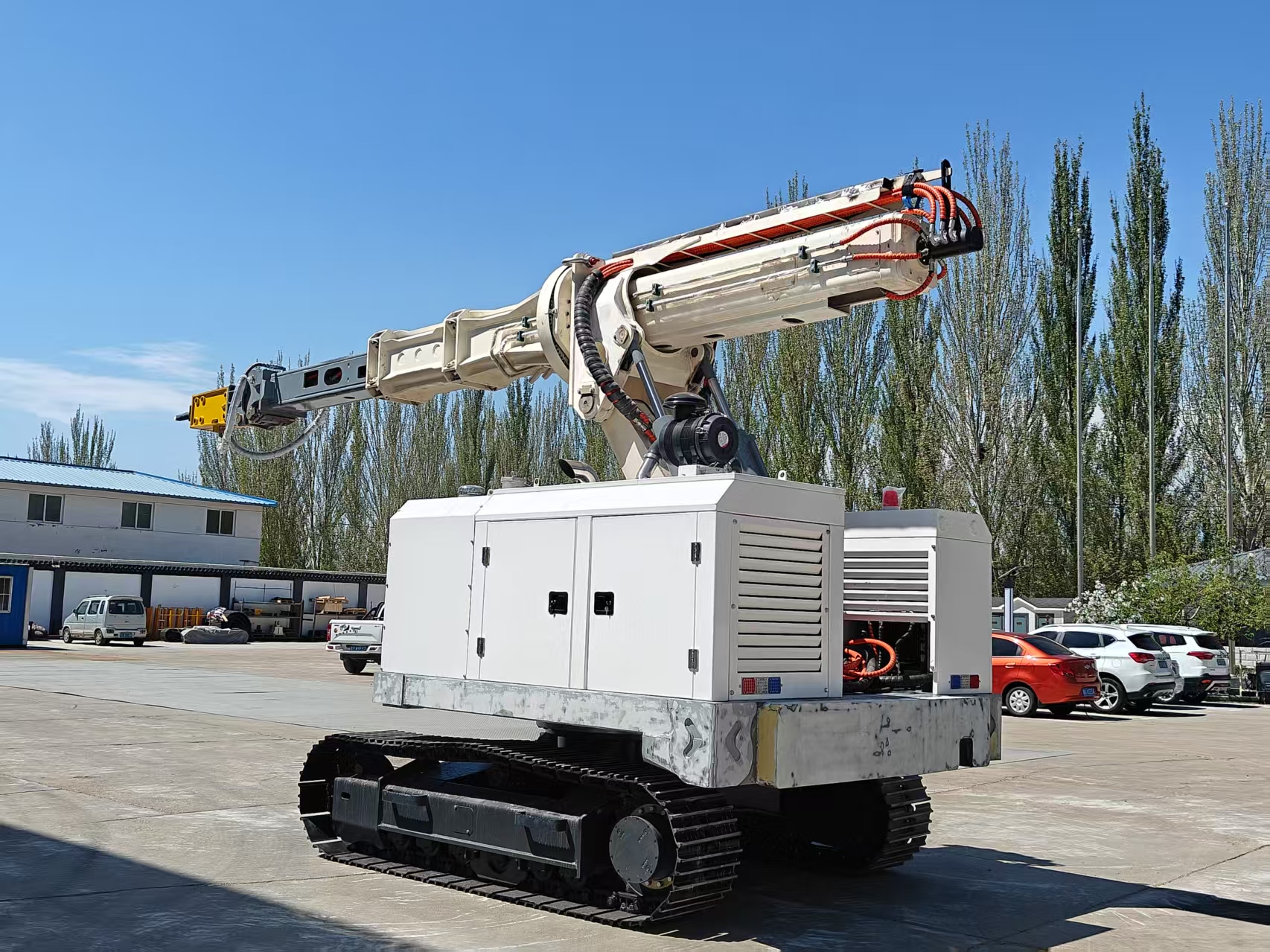

Mobile slag demolition machines are more widely used in modern metallurgical plants. These machines are usually mounted on a mobile chassis, such as a tracked or wheeled vehicle. They are equipped with powerful demolition equipment, such as large - scale hydraulic breakers or crushers. The mobility of these machines allows them to quickly move around the blast furnace area, reaching different positions where slag needs to be removed. Some mobile demolition machines also have telescopic arms or articulated booms, which can extend to hard - to - reach areas of the furnace, increasing the scope of slag removal.
2.3 Automated Demolition Systems
With the development of technology, automated slag demolition systems have emerged. These systems use sensors and control algorithms to achieve automated operation. For example, sensors can detect the thickness and location of the slag layer. Based on the data collected by the sensors, the control system can automatically adjust the operation parameters of the demolition equipment, such as the impact force and the frequency of the hammer. Automated demolition systems can improve the accuracy and efficiency of slag removal. They can also reduce the need for human operators to work in high - temperature and high - risk environments, thus enhancing safety in the workplace.
3. Advantages of Using Blast Furnace Slag Demolition Machines
3.1 Improved Safety
One of the most significant advantages of using slag demolition machines is the improvement in safety. By using these machines, workers can avoid direct contact with the high - temperature slag and the heavy, vibrating demolition tools. For example, in the case of mobile or automated demolition machines, operators can control the equipment from a safe distance. This reduces the risk of burns, back injuries, and other accidents caused by working in close proximity to the slag and using hand - held tools. In addition, the use of machines can also reduce the number of workers required in the high - risk area around the blast furnace, further enhancing overall safety.
3.2 Higher Efficiency
Slag demolition machines can greatly improve the efficiency of slag removal. Compared with manual methods, machines can complete the slag removal task in a much shorter time. Mobile and automated machines can continuously operate and quickly break and remove large amounts of slag. For example, a large - scale mobile demolition machine can remove several tons of slag within an hour, while manual removal would take much longer. Higher efficiency means less downtime for the blast furnace. Shorter downtime allows the blast furnace to resume production more quickly, thereby increasing overall production output and productivity in the metallurgical plant.
3.3 Cost - Effectiveness
Although the initial investment in purchasing a slag demolition machine may be relatively high, in the long run, it is cost - effective. By improving efficiency and reducing downtime, the machine helps increase production output. The increased production can offset the cost of purchasing and maintaining the machine. In addition, the reduction in labor costs due to less manual labor required for slag removal also contributes to cost savings. Moreover, the use of machines can reduce the risk of damage to the blast furnace during slag removal. If slag is removed manually with improper methods, it may cause damage to the furnace lining, which would require costly repairs. Machines can operate more precisely, minimizing the risk of such damage.
4. Applications of Blast Furnace Slag Demolition Machines
4.1 Regular Maintenance in Metallurgical Plants
In metallurgical plants, blast furnace slag demolition machines are an essential part of regular maintenance. During the normal operation of the blast furnace, slag continuously accumulates. Regularly scheduled slag removal using these machines can ensure the smooth operation of the furnace. For example, in a large - scale steel - making plant, slag demolition machines are used once a week or once every few days, depending on the production volume and the rate of slag accumulation. This regular maintenance helps prevent excessive slag build - up, which could otherwise affect the efficiency of the blast furnace and even lead to production stoppages due to equipment failures.
4.2 Emergency Repairs
In some cases, unexpected situations may occur in the blast furnace, such as the sudden formation of a large amount of abnormal slag or the blockage of certain parts of the furnace by slag. In such emergency situations, slag demolition machines play a crucial role. They can quickly be mobilized to the site of the problem and start the demolition work. Their ability to quickly remove the abnormal slag can help the blast furnace return to normal operation as soon as possible, minimizing the economic losses caused by production interruptions.
5. Case Studies of Blast Furnace Slag Demolition Machine Applications
5.1 A Large - Scale Steel - Making Plant in Europe
A large - scale steel - making plant in Europe adopted an automated slag demolition system. Before using this system, the plant relied mainly on manual and semi - automated methods for slag removal. The manual work was not only time - consuming but also posed a high risk to workers. After installing the automated slag demolition system, the situation changed significantly. The sensors in the system could accurately detect the slag layer, and the automated demolition equipment could quickly and precisely remove the slag. The efficiency of slag removal increased by 80%, and the downtime of the blast furnace was reduced by more than 50%. In addition, the number of workers required for slag removal was reduced by two - thirds, greatly improving the safety and productivity of the plant.
5.2 A Copper - Smelting Plant in North America
In a copper - smelting plant in North America, mobile slag demolition machines were introduced. The plant used to face problems such as long - time shutdowns for slag removal and high labor costs. After using the mobile slag demolition machines, which were equipped with powerful hydraulic breakers, the slag removal process became much faster. The machines could move freely around the smelting furnace and reach various positions to remove slag. The time required for each slag removal operation was reduced from 10 hours to 3 hours. As a result, the production capacity of the plant increased by 30%, and the overall production cost was reduced by 20% due to increased efficiency and reduced labor costs.
6. Future Developments of Blast Furnace Slag Demolition Machines
6.1 Integration of Advanced Technologies
In the future, blast furnace slag demolition machines will increasingly integrate advanced technologies. For example, artificial intelligence (AI) technology will be used to further optimize the operation of the machines. AI algorithms can analyze the data from sensors in real - time and adjust the demolition parameters more accurately. This will not only improve the efficiency of slag removal but also reduce energy consumption. In addition, the integration of Internet of Things (IoT) technology will enable remote monitoring and control of the machines. Operators can monitor the operation status of the machines from anywhere in the world and make adjustments as needed, improving the management and maintenance of the machines.
6.2 Development of Environmentally - Friendly Demolition Methods
With the increasing emphasis on environmental protection, future slag demolition machines will focus on developing more environmentally - friendly demolition methods. For example, research is being carried out on using supercritical fluid technology for slag removal. Supercritical fluids can penetrate into the slag structure and break it down in a more environmentally - friendly way compared to traditional mechanical or thermal methods. This can reduce dust emissions and other pollutants generated during the slag removal process, making the metallurgical production process more sustainable.
6.3 Miniaturization and Multi - Functionality
There will also be a trend towards miniaturization and multi - functionality in the development of slag demolition machines. Miniaturized machines will be more suitable for use in small - scale metallurgical plants or in areas with limited space. At the same time, multi - functional machines will be able to perform not only slag removal but also other tasks such as furnace inspection and minor repairs. This will increase the versatility of the machines and reduce the need for multiple separate pieces of equipment, thus saving costs and space in the metallurgical plant.
In conclusion, blast furnace slag demolition machines are of great significance in the metallurgical industry. They have brought about significant improvements in safety, efficiency, and cost - effectiveness. With the continuous development of technology, these machines will continue to evolve and play an even more important role in the future development of the metallurgical industry.
