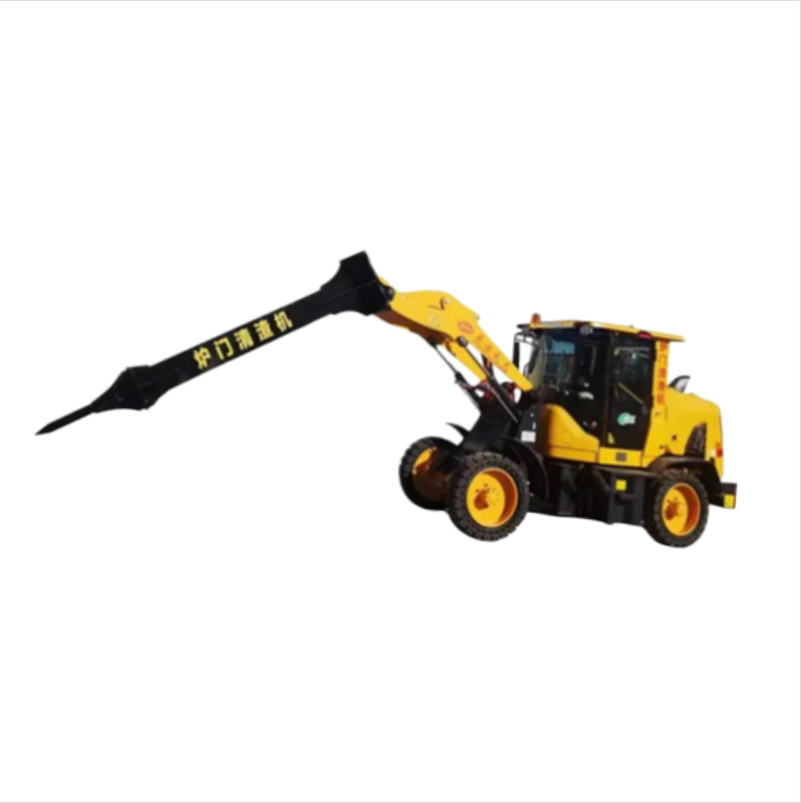

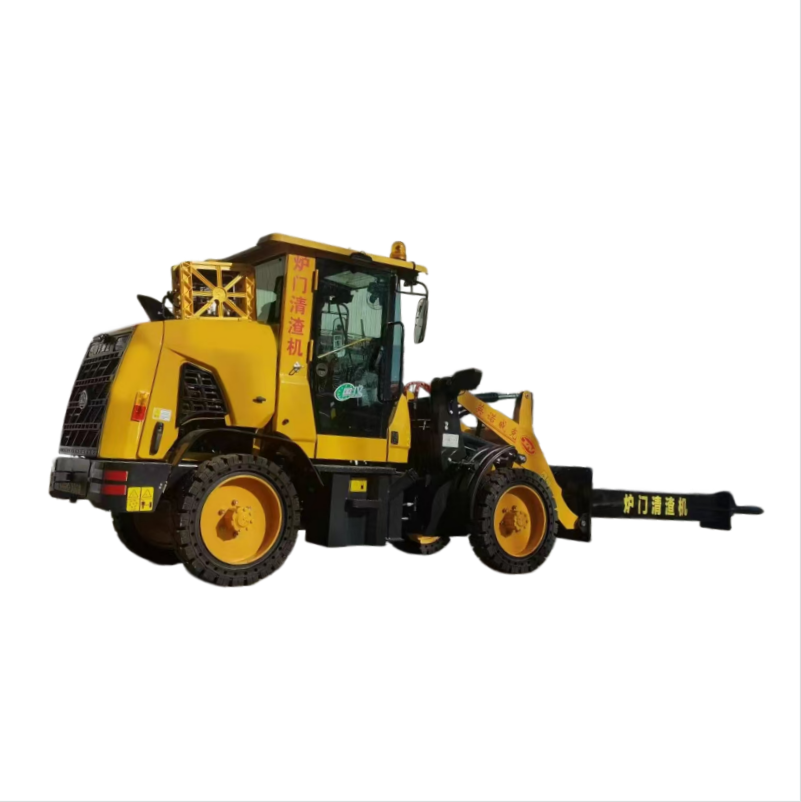

ZLB100
Innovake
Functions
Clean the slag door: Remove solidified slag and steel to ensure smooth slag tapping.
Clear the tap hole: Open blocked tap holes and maintain proper shape for steel tapping.
Clean the launder: Remove deposits in steel launders and slag channels.
Replace manual high-risk operation: Remote control to keep workers away from high temperature and splashing.
Improve production efficiency: Fast cleaning to reduce downtime.
Protect refractory lining: Reduce damage to refractories during cleaning.
Application Scenarios
Applied in electric arc furnace (EAF) steelmaking plants.
Used during normal production for online hot cleaning.
Used before and after tapping to ensure smooth steel and slag flow.
Used for routine maintenance of tap holes, slag doors and launders.
Suitable for conventional EAF and EBT EAF.
| Parameters | ZLB100 |
| Length of chisel rod | 3000mm |
| Engine rated power | 36.5Kw |
| Minimum turning radius | 3730mm |
| Overall dimension | 6800*1410*2150mm |
