| Rated Output: | |
|---|---|
| Max. Horizontal Conveying Distance : | |
| Rotor Speed: | |
| Material Charging Height: | |
| Motor Power: | |
| Quantity: | |

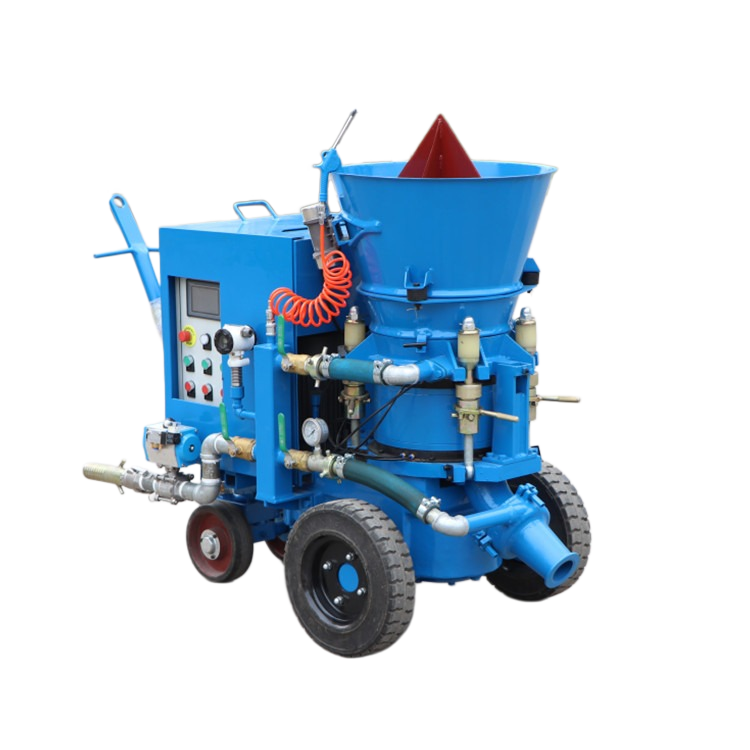

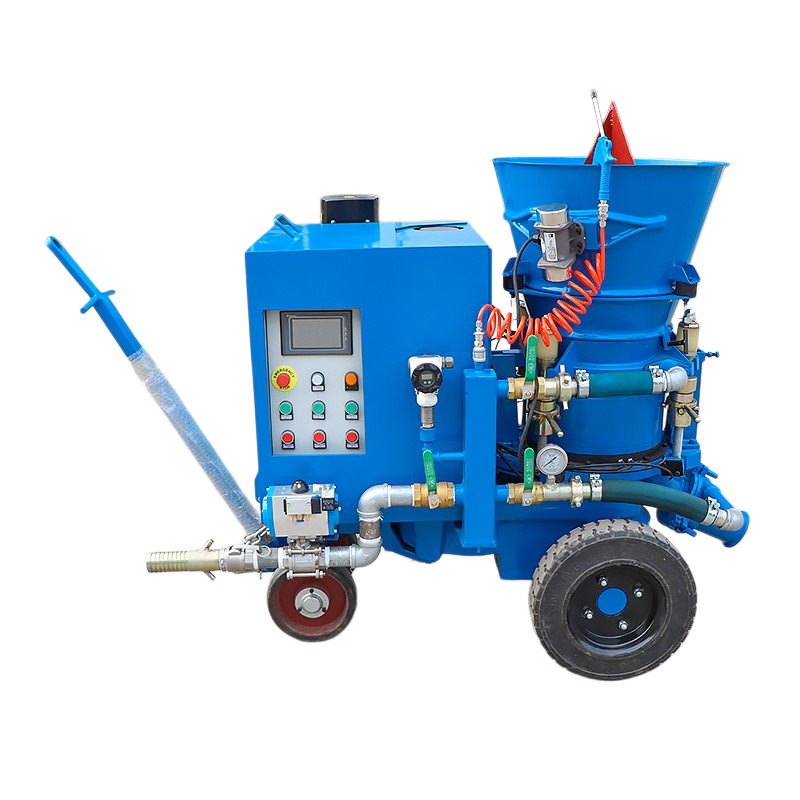

WZ-3ER
INNOVAKE
WZ-3ER
Core Functions:
High-speed spraying of refractory/concrete via compressed air to form dense, heat-resistant layers. Integrated mixing, conveying, and intelligent touch-screen control for efficient, high-quality construction.
Applications:
Industrial Furnaces: Thermal repair of steel/cement/glass kilns and other high-temperature furnaces.
Underground Engineering: Tunnel/metro/hydropower/mining roadway shotcrete support.
Civil Engineering: Slope stabilization, building reinforcement, and refractory/fireproof coating applications.
| Model | WZ-3ER |
| Rate ouput | 1–3 m³/h(2-6T/h) |
| Max.Horizontal conveying distance | 100m |
| Max. aggregate size | 10mm |
| Conveying hose inner diameter | 32/38mm |
| Operating air pressure | 0.2-0.4MPa(29-58PSI) |
| Air consumption | 5–6 m³/min(180-215CFM) |
| Voltage | 3 phase,380V，50Hz |
| Motor power | 4 Kw |
| Material charing height | 1.2m |
Core Functions:
High-speed spraying of refractory/concrete via compressed air to form dense, heat-resistant layers. Integrated mixing, conveying, and intelligent touch-screen control for efficient, high-quality construction.
Applications:
Industrial Furnaces: Thermal repair of steel/cement/glass kilns and other high-temperature furnaces.
Underground Engineering: Tunnel/metro/hydropower/mining roadway shotcrete support.
Civil Engineering: Slope stabilization, building reinforcement, and refractory/fireproof coating applications.
| Model | WZ-3ER |
| Rate ouput | 1–3 m³/h(2-6T/h) |
| Max.Horizontal conveying distance | 100m |
| Max. aggregate size | 10mm |
| Conveying hose inner diameter | 32/38mm |
| Operating air pressure | 0.2-0.4MPa(29-58PSI) |
| Air consumption | 5–6 m³/min(180-215CFM) |
| Voltage | 3 phase,380V，50Hz |
| Motor power | 4 Kw |
| Material charing height | 1.2m |
