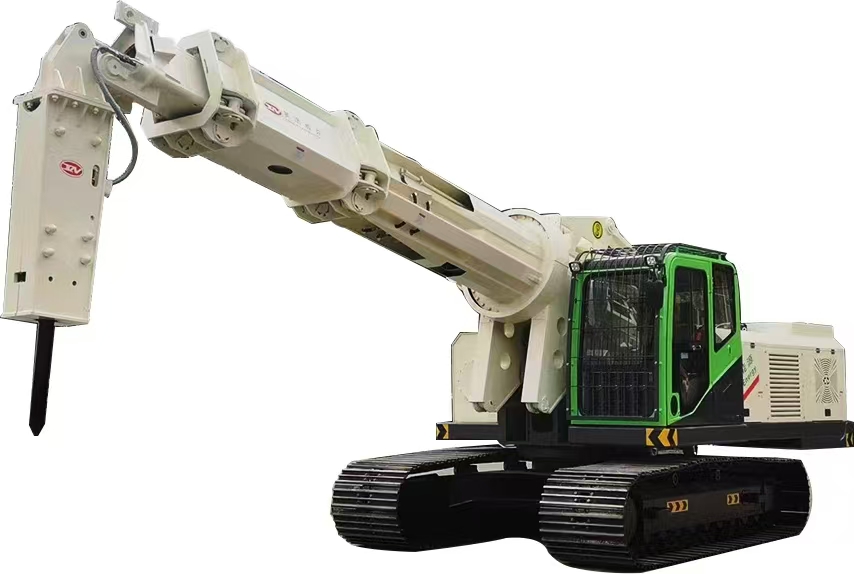

The Furnace Demolition Machine is mainly composed of four core modules:
Replaceable working tools, telescopic working arm, platform, and chassis.
The working arm includes components such as the main swing arm, telescopic arm, bracket, hydraulic cylinder, and hose guiding device.
In detail:
Replaceable Working Tools: Interchangeable attachments (e.g., hydraulic impactor, hook shovel, reamer) designed to fulfill diverse operational tasks⊃1;.
Telescopic Working Arm: Adopts a straight-arm full-hydraulic telescopic system with a humanoid functional structure, enabling complex spatial operations. The main swing arm is an equilateral triangular welded component equipped with a roller support at the front end, which adjusts the telescopic arm to ensure coaxiality. The bracket is a welded part with a rotating joint fixed at the rear end, realizing the connection of hydraulic pipelines between the fixed and rotating parts⊃1;⊃2;.
Platform: Serves as the installation and support base for various equipment (e.g., engine, hydraulic system). The furnace breaker is powered by a water-cooled Dongfeng Cummins engine. The power system reduces machine vibration through flexible connection, extending service life⊃2;.
Chassis: Supports the entire machine to ensure stable operation under different working conditions. The slewing mechanism drives the rotation between the platform and the travel chassis via a slewing bearing and reducer.
