The water well drill is a top-drive, high-efficiency and multi-functional full-hydraulic drill. It features advanced technology, easy operation, high working efficiency, reliability and durability. It is widely applicable to drilling water wells, monitoring wells, dewatering wells, rescue wells, ground source air conditioning holes, as well as coalbed methane, natural gas and petroleum exploitation and other engineering projects.
The drill can adopt compressed air DTH (down-the-hole) drilling in various formations in high-temperature, high-cold and high-altitude regions, and delivers a high drilling rate in rocks with Protodyakonov har
dness ranging from f=4-20.

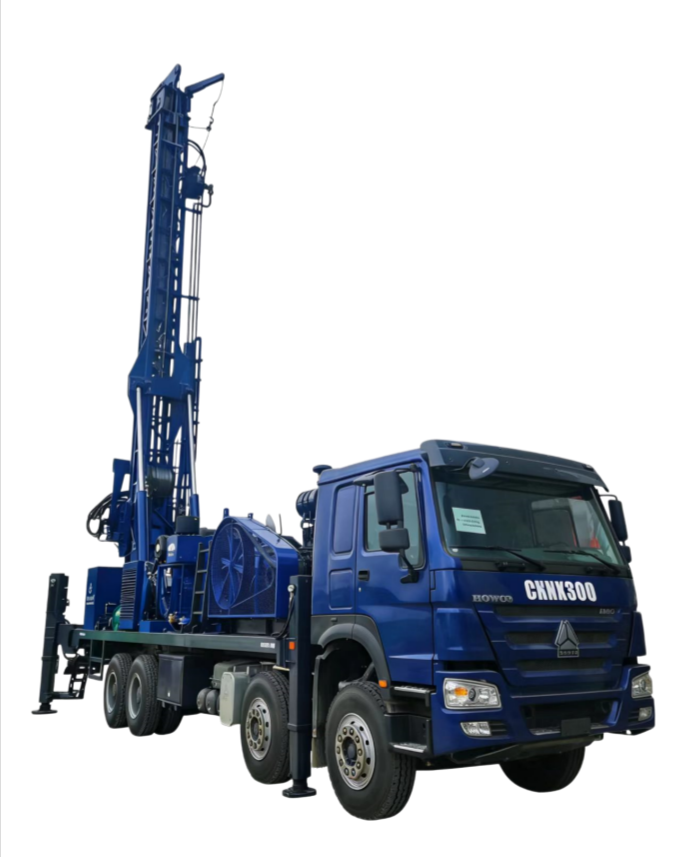

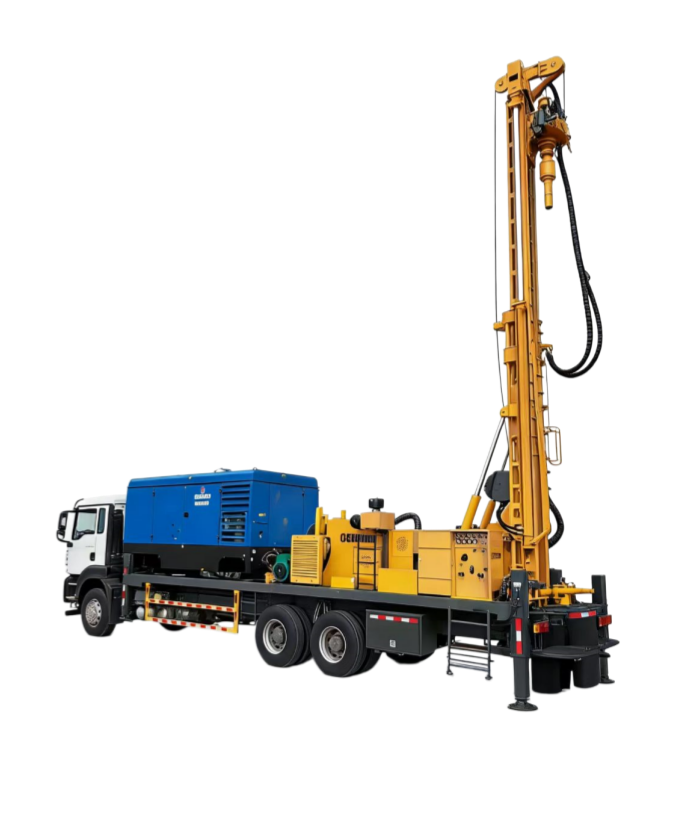

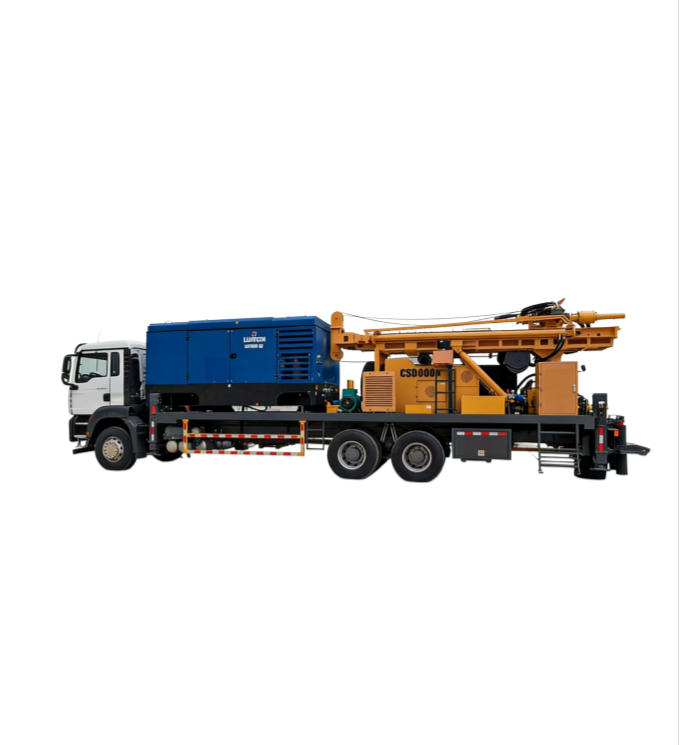

All actions of the drill, including mast lifting, drill pipe making-up and breaking, rotation and feeding, outriggers, winching and traveling, are realized by the hydraulic system. It can directly operate with 6m drill pipes or 6m casings, greatly reducing labor intensity and improving construction efficiency and engineering quality. Each model of the drill can be retrofitted to a truck-mounted chassis.
| Parameter | SL400S | SL600S | SL1200 | SL1200 |
| Max.drilling depth | 400m | 600m | 1200m | 2000m |
| Drilling diameter | 105-325mm | 105-450mm | 105-900mm | 105-1000mm |
| Air consumption | 16-55m³/min | 16-75m³/min | 16-120m³/min | 16-120m³/min |
| Drill pipe length | 6m | 6m | 6m | 6m |
| Drill pipe diameter | 89/102mm | 102mm | 127mm | 127mm |
| Axial pressure | 4T | 6T | 13T | 19T |
| Lifting force | 22T | 38T | 61T | 100T |
| Fast lifting speed | 29m/min | 30m/min | 27m/min | 30m/min |
| Max.rotary torque | 8000/4000N.m | 11000/5500N.m | 24000/12000N.m | 36500/29000N.m |
| Max.rotary speed | 75/150 | 105/210 r/min | 75/150 r/min | 62/124 r/min |
| Small Auxiliary Winch Lifting force | 1.5T | 2.5T | 1.5T | 1.5T |
| Drilling efficiency | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h |
| Moving speed | 2.5Km/h | 4.5Km/h | 6Km/h | 5Km/h |
| Gradeability | 21° | 21° | 21° | 21° |
| Weight | 9.8T | 13.5T | 19.4T | 36T |
| Overall dimension | 6.3*1.86*2.55m | 6.3*2.25*2.65m | 8.8*2.25*3m | 12*2.6*3.6m |
| Optional accessories | Mud pump Centrifugal pump Generator Foam pump | |||
