Electrical Furnace Debricking Machine

Views: 0 Author: Site Editor Publish Time: 2025-10-09 Origin: Site

Electrical Furnace Debricking Machine: Revolutionizing Refractory Maintenance in Metallurgy

Refractory brick linings are critical components of electrical furnaces, withstanding temperatures up to 3,000°C during steelmaking processes . However, their gradual degradation from thermal stress and chemical corrosion necessitates regular removal and replacement—a task once dominated by manual labor. The electrical furnace debricking machine has emerged as a transformative solution, addressing the inefficiencies, safety risks, and cost burdens of traditional maintenance practices. This article explores the technology, benefits, and applications of this essential metallurgical equipment.

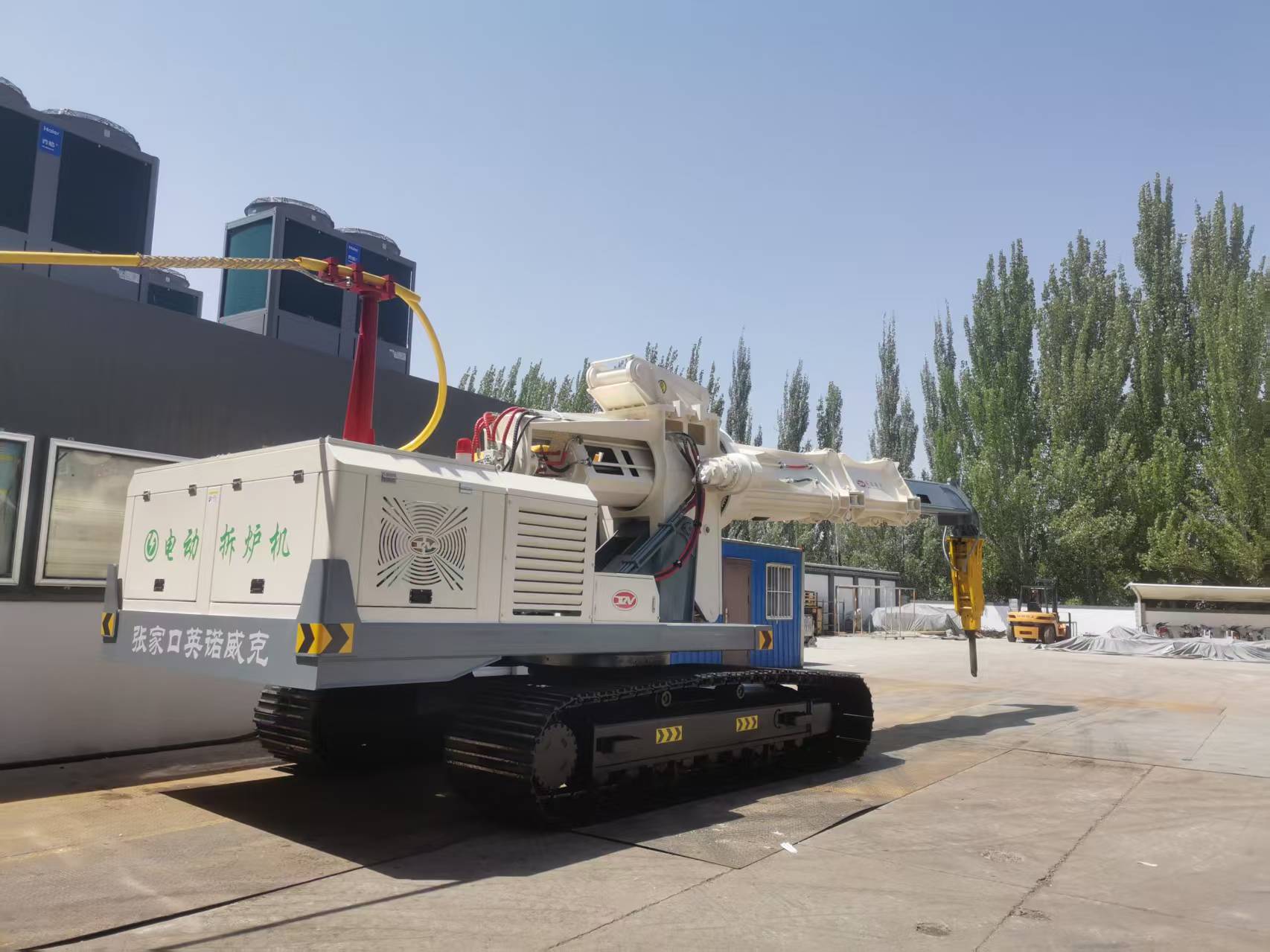

微信图片_20250507113025

1. The Imperative for Automated Debricking

For decades, refractory removal relied on workers entering cooled furnaces with handheld jackhammers—a process fraught with limitations . Manual debricking requires extended furnace cooldown periods (often 24–48 hours) to ensure worker safety, drastically reducing production uptime. Labor intensity is extreme: a single furnace lining replacement may demand 8–12 workers over several shifts, with productivity constrained by physical fatigue and skill variability . Safety hazards abound, including exposure to residual heat, falling debris, and silica dust inhalation.

Modern steel mills, facing pressure to boost efficiency and comply with stringent safety regulations, have turned to automated debricking machines. These systems eliminate human entry into hazardous zones and enable earlier maintenance initiation—even before complete furnace cooldown —directly addressing the flaws of manual operations.

2. Core Structure and Working Principles

Electrical furnace debricking machines integrate robust mechanical design with precision hydraulics and remote control systems. Their modular architecture typically comprises four key components :

2.1 Support Framework

The foundational 架台 (jiàtái, support platform) anchors the entire system, featuring retractable clamps that secure to furnace mouth rails via a four-link hydraulic mechanism. This clamping system prevents tipping during high-impact operations, while a movable base extends the machine’s working range across the furnace opening . A dedicated storage rack houses the machine during non-operational periods, protecting it from workshop debris and facilitating maintenance .

2.2 Articulated Working Arm

The machine’s core functionality resides in its 360° rotating telescopic arm, engineered to access confined spaces within furnace chambers . Equipped with three hydraulic cylinders, the arm adjusts angle, length, and tool orientation—enabling precise positioning of demolition attachments . High-temperature resistant materials allow continuous operation in environments up to 1,600°C, eliminating downtime for machine cooling .

2.3 Specialized Tooling

Interchangeable attachments adapt the machine to diverse tasks:

Hydraulic Hammers: Deliver high-impact force for refractory brick demolition

Drill Bits: Precision boring for taphole cleaning and plug removal

Scrapers/Hooks: Clear slag deposits from furnace lips and walls

Advanced models integrate button reamers and porous plug removal tools, expanding utility beyond basic debricking .

2.4 Remote Control System

Operators manage the machine via radio remote control, maintaining a safe distance from heat, debris, and toxic fumes . Real-time adjustments to arm position and tool pressure ensure accurate material removal without damaging furnace structural components.

3. Transformative Benefits for Metallurgical Operations

The adoption of automated debricking machines delivers measurable improvements across key performance metrics:

3.1 Enhanced Operational Efficiency

By enabling maintenance at elevated temperatures, these machines reduce furnace downtime by 30–40% compared to manual methods . The TML Unidachs 6 series, for example, achieves a working radius of 10.5 meters, covering entire furnace interiors without repositioning . This efficiency translates to an additional 5–8 production cycles annually for typical steel mills.

3.2 Superior Safety Standards

Remote operation eliminates worker exposure to hazardous conditions, reducing lost-time injuries by over 90% . Reinforced machine construction withstands thermal shock and slag abrasion, minimizing equipment failure risks in extreme environments .

3.3 Cost Optimization

While initial investment is higher than manual tools, long-term savings are substantial:

Labor cost reduction: 1 machine replaces 6–8 workers per shift

Maintenance efficiency: Modular design lowers repair time by 50%

Extended furnace life: Precise debricking prevents accidental structural damage

3.4 Versatile Application Range

Modern debricking machines serve multiple metallurgical needs:

Electric arc furnace (EAF) refractory removal

Taphole and slag door cleaning

Ladle and torpedo car refurbishment

Blast furnace trough maintenance

4. Technical Specifications and Model Selection

Manufacturers offer a range of models tailored to furnace size and application requirements. Key parameters include:

Model Series	Operating Weight	Max Working Radius	Target Application
Unidachs 1	3,200 kg	4.6 m	Small EAFs, ladles
Unidachs 3	9,500 kg	7.8 m	Medium converters
LB 160	21,000 kg	16 m	Large blast furnaces

Selection criteria should prioritize working radius matching furnace dimensions, tool compatibility with refractory types, and temperature resistance rating.

5. Future Trends: Intelligence and Sustainability

The next generation of debricking machines integrates smart technologies and green design:

Predictive Maintenance: Sensors monitor arm wear and hydraulic pressure, alerting operators to potential failures

Alternative Power Sources: Hydrogen-fueled systems reduce carbon emissions in line with metallurgical decarbonization goals

Robotic Automation: AI-powered systems optimize tool pathing for minimal material waste

These innovations position debricking machines as critical enablers of the "intelligent and green transformation" in global metallurgy.

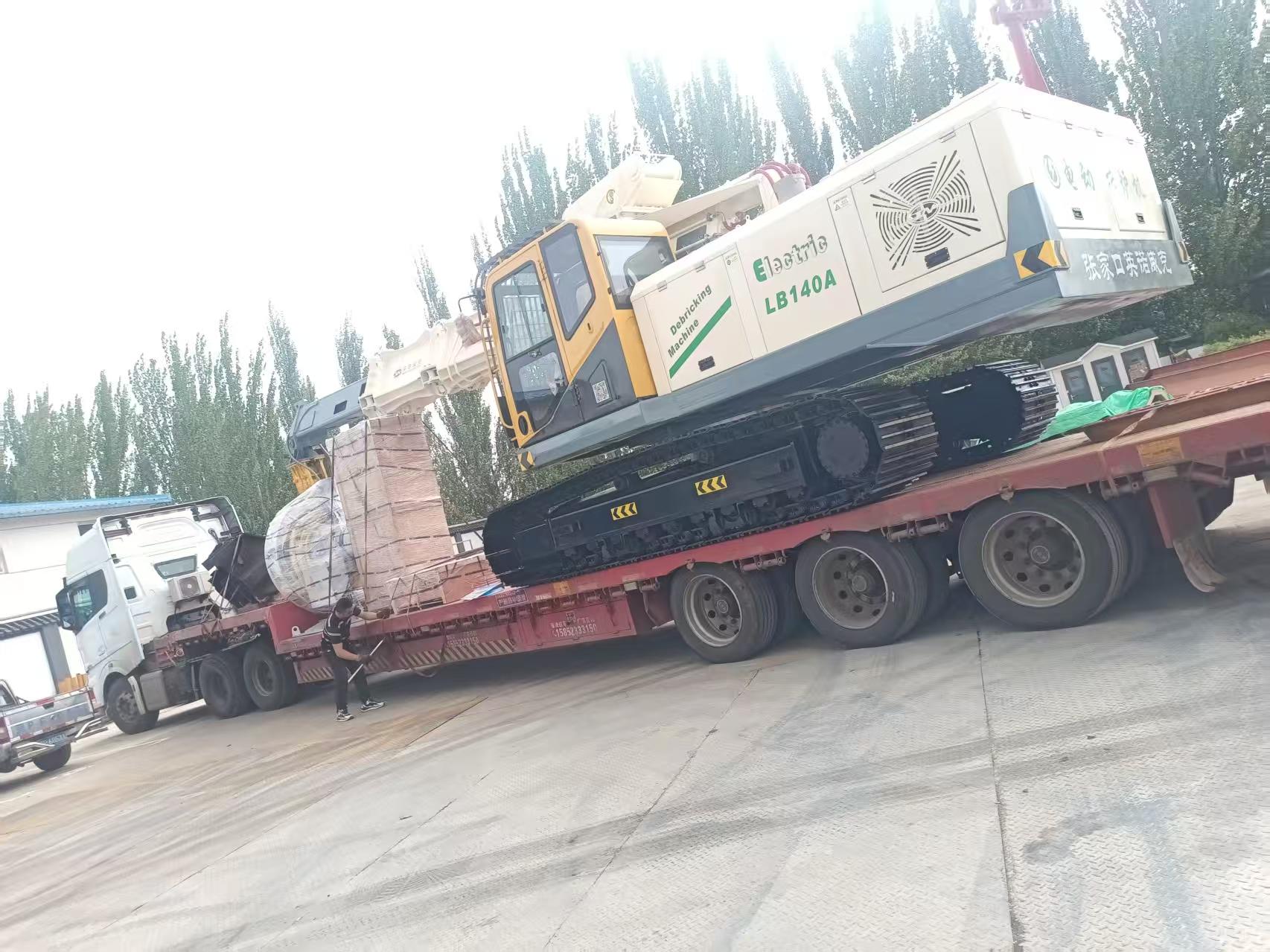

微信图片_20250507174138

6. Conclusion

The electrical furnace debricking machine has redefined refractory maintenance, merging safety, efficiency, and versatility in harsh industrial environments. As steelmakers pursue decarbonization and productivity gains, this technology will remain indispensable—driving operational excellence while protecting workers and equipment. For metallurgical facilities seeking competitive advantage, investing in advanced debricking systems is not just a maintenance decision, but a strategic imperative.
