Taphole Drilling And Plugging Machines

Taphole maintenance machines are specialized pieces of equipment designed to perform the complex tasks of taphole drilling and sleeve brick replacement with precision and efficiency. These machines come in various configurations, often incorporating telescopic boom technology similar to the telescopic boom wrecking machines, which allows for greater reach and flexibility in accessing the taphole.

Drilling Capabilities

1. Powerful Drill Mechanisms: Taphole maintenance machines are equipped with high - torque drill motors. For example, some models can generate a drill torque of 4000 - 9000 Nm, depending on the specific requirements of the application. This high torque enables the machine to drill through the hardened slag and refractory materials that may have accumulated in the taphole. The drill bits used are also specially designed, with options such as solid drill bits, TC bits drill, and fine cutter drills, depending on the nature of the material to be drilled.

1. Fast Drilling Speeds: In optimal conditions, these machines can drill a taphole within 5 - 20 minutes, depending on factors such as the site conditions, the type of material being drilled, and the diameter of the taphole. For instance, in a well - maintained converter with relatively soft slag build - up, a machine might be able to complete the drilling operation in as little as 5 minutes, significantly reducing the downtime associated with taphole maintenance.

1. Precision Drilling: The use of advanced control systems, whether through cabin - based controls or remote - control options, ensures that the drilling is carried out with great precision. The operator can accurately position the drill bit at the desired location in the taphole, ensuring that the new hole is drilled straight and to the correct diameter. This precision is crucial for the proper functioning of the taphole and the subsequent insertion of the sleeve brick.













1. Efficient Removal of Worn - Out Sleeves: When it comes to replacing the sleeve bricks, taphole maintenance machines are designed to first remove the worn - out sleeves. This can be a challenging task as the sleeves are often firmly adhered to the taphole due to the high - temperature and chemical reactions that occur during the steel - making process. The machines use a combination of mechanical force and specialized attachments to carefully break the bond between the sleeve and the taphole wall. Some models may use a counter - percussion technique, where a series of rapid, precisely - timed blows are delivered to the sleeve, loosening it from the surrounding material without causing excessive damage to the taphole structure.

1. Precise Insertion of New Sleeve Bricks: Once the old sleeve is removed, the machine is then used to insert the new sleeve brick. The new sleeve must be inserted with utmost precision to ensure a proper fit and seal. Taphole maintenance machines are equipped with mechanisms that can accurately position and lower the new sleeve into the taphole. For example, some machines use a hydraulic - powered positioning system that allows for fine - tuned adjustments in the vertical and horizontal directions. The sleeve is then gently pressed into place, and in some cases, additional measures such as grouting or using specialized fasteners may be employed to secure the sleeve in position.




  1.Mounting Options

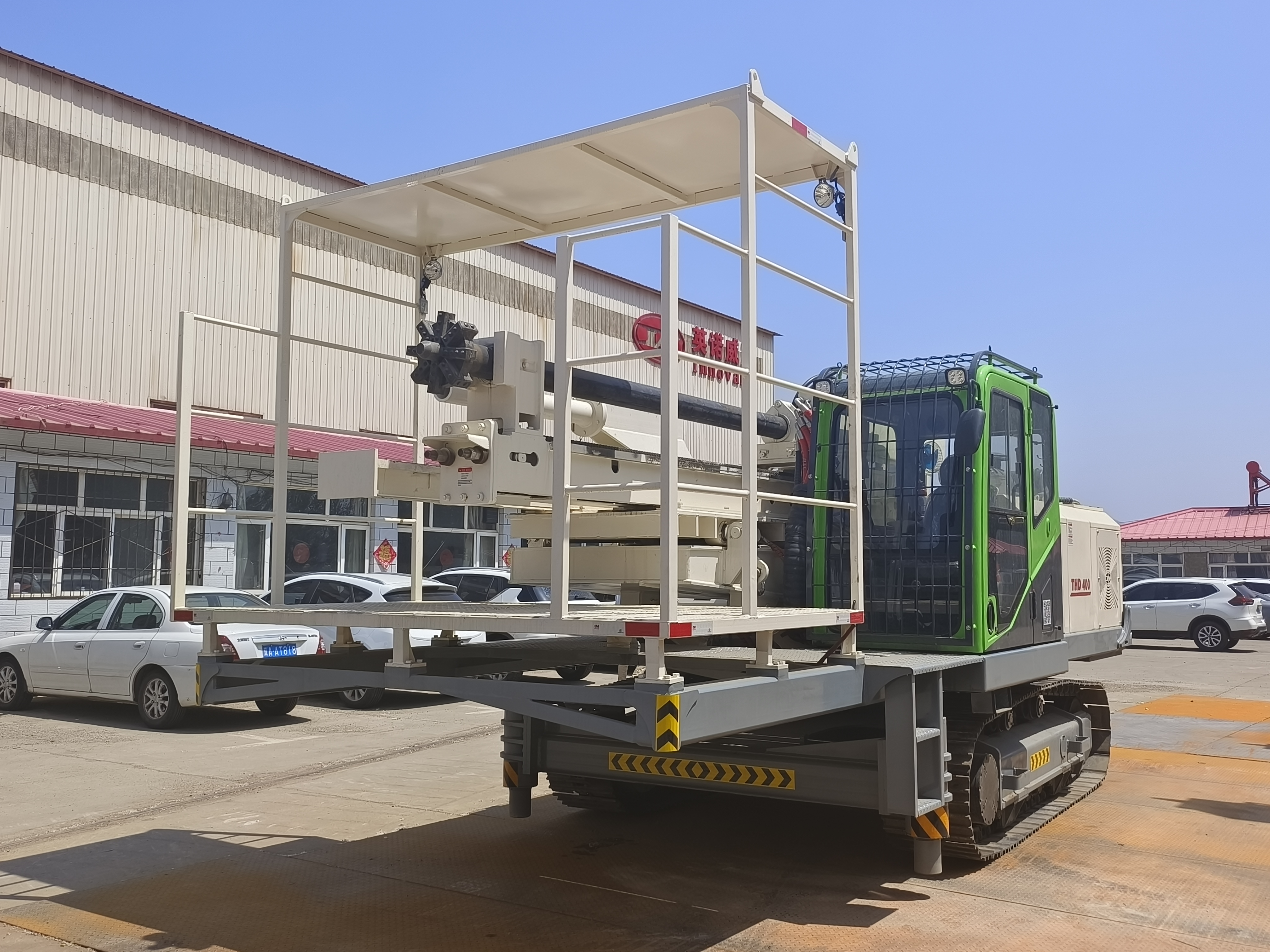

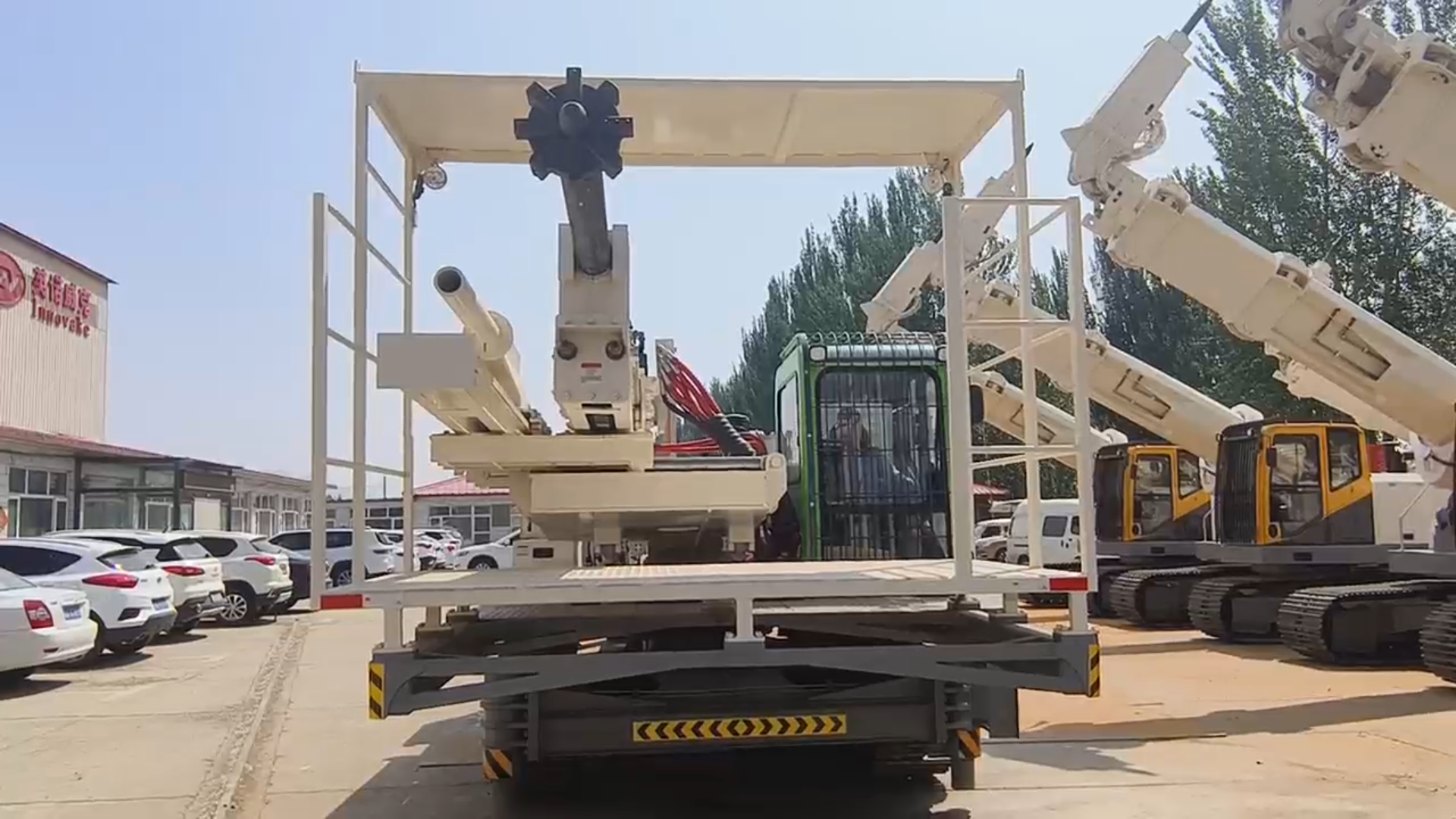

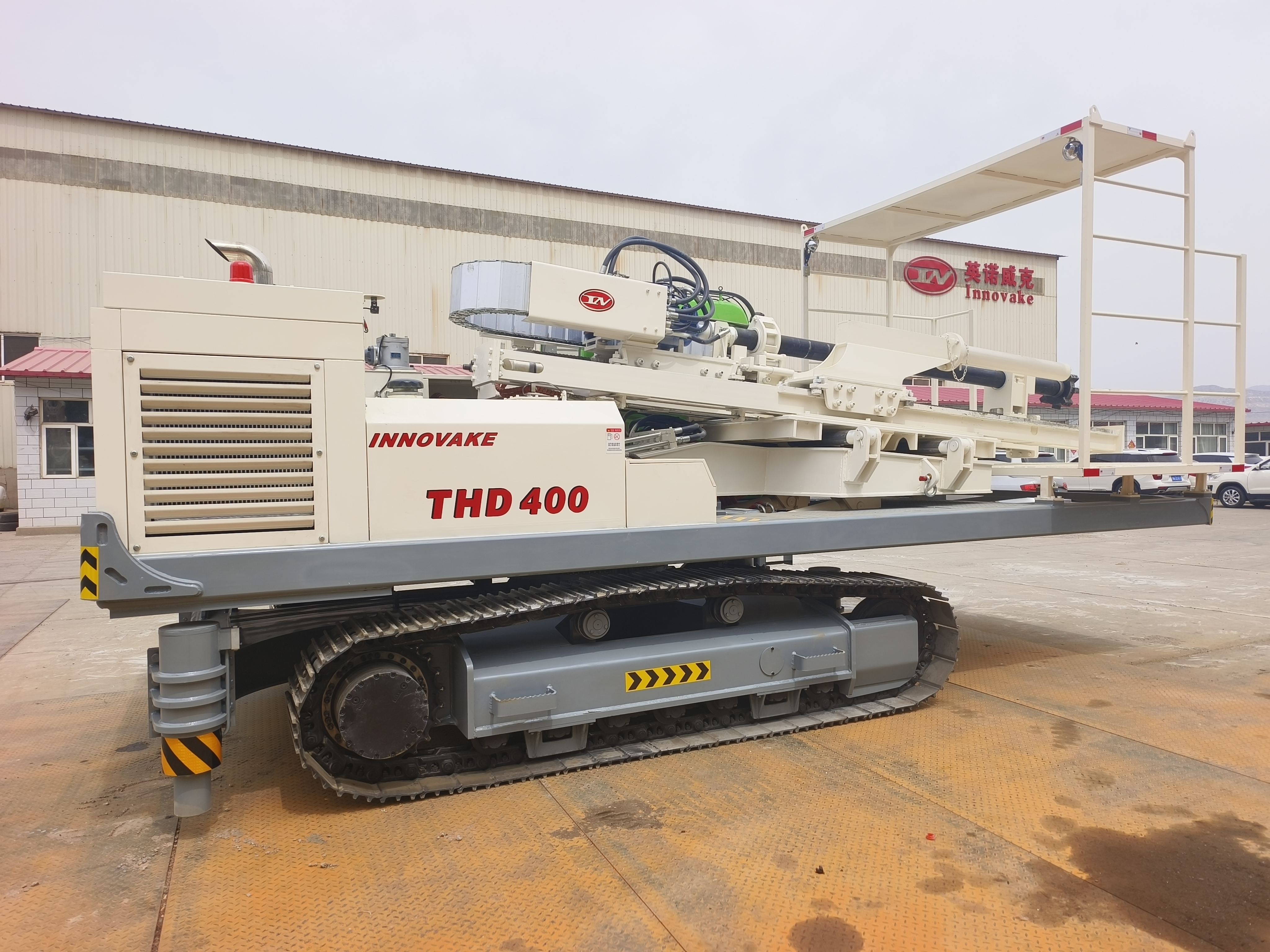

• Crawler - Mounted: Similar to their counterparts in demolition, crawler - mounted taphole maintenance machines offer excellent stability. In a steel - making plant, where the ground may be uneven and littered with debris, the crawler tracks distribute the machine's weight evenly. This allows the machine to approach the converter taphole safely and maintain a stable position during the drilling and sleeve replacement operations. The stability is particularly important when the machine is exerting high forces during drilling or when handling the heavy sleeve bricks.

• Tire - Mounted: Tire - mounted machines provide greater mobility. In industrial complexes where there are multiple converters or where the taphole maintenance machine needs to be moved frequently between different work areas, the speed and ease of movement offered by tire - mounted machines are highly advantageous. They can quickly be driven to the location of the converter in need of taphole maintenance, reducing the time spent on transportation and increasing overall productivity.

  2.Power Options

• Diesel Engine Drive: Diesel - powered taphole maintenance machines are suitable for applications where access to electrical power is limited or where continuous, uninterrupted operation is required. In some remote steel - making facilities or in areas where the electrical infrastructure is unreliable, a diesel - engine - driven machine can be relied upon. The high - power output of diesel engines ensures that the machine can perform the demanding tasks of taphole drilling and sleeve brick replacement without any loss of performance.

• Electric Motor Drive: Electric - powered machines are more environmentally friendly, producing less noise and emissions. In modern steel - making plants where environmental concerns are a priority, especially in areas where workers are present in close proximity to the taphole maintenance operations, electric - motor - driven machines are preferred. They also tend to offer more precise control, which is beneficial for the delicate tasks of sleeve brick replacement.

  3.Operation Modes

• Cabin - Operated: Cabin - operated machines provide the operator with a comfortable and protected working environment. The cabin is often equipped with climate - control systems and ergonomic controls, allowing for long - hours of operation without fatigue. In large - scale steel - making operations where taphole maintenance is a regular and time - consuming task, a cabin - operated machine can enhance the operator's productivity and job satisfaction. The operator can have a clear view of the taphole area through large windows, enabling precise control of the machine's operations.

• Remote - Operated: Remote - control options for taphole maintenance machines offer enhanced safety, especially considering the hazardous nature of the taphole area. The operator can stand at a safe distance from the converter, away from the potential dangers of high temperatures, flying debris, and toxic fumes that may be present during the taphole maintenance process. This is particularly useful during the drilling operation, where there is a risk of slag fragments being ejected from the taphole. Some machines even offer a combined cabin and remote operation mode, providing maximum flexibility to the operator based on the specific requirements of the task.







1. Enhanced Safety: By minimizing the need for workers to be in close proximity to the hot and potentially dangerous taphole area, taphole maintenance machines significantly improve safety. The risk of workers being burned by the high - temperature molten metal, inhaling harmful fumes, or being injured by flying debris is greatly reduced. In the case of remote - controlled machines, the operator can control the entire maintenance process from a safe location, further enhancing safety levels.

1. Increased Efficiency: The powerful drilling mechanisms and efficient sleeve replacement capabilities of these machines lead to a significant reduction in the time required for taphole maintenance. This means that the converter can be back in operation more quickly, increasing the overall productivity of the steel - making plant. For example, in a large - scale steel - making facility where multiple converters are operating continuously, reducing the taphole maintenance time by even a few minutes for each converter can result in a substantial increase in daily steel production.

1. Precision Operations: The precise control offered by taphole maintenance machines ensures that the drilling and sleeve replacement operations are carried out to the highest standards. This is crucial for maintaining the integrity of the taphole and ensuring the smooth flow of molten metal. A well - maintained taphole with properly installed sleeve bricks can prevent issues such as metal leakage, uneven flow, and excessive wear on the taphole walls, ultimately extending the lifespan of the converter and reducing maintenance costs in the long run.

1. Reduced Labor Intensity: Traditional methods of taphole maintenance, which often involved manual labor, were extremely labor - intensive and physically demanding for workers. Taphole maintenance machines automate many of these tasks, reducing the physical strain on workers and allowing them to focus on more skilled aspects of the operation, such as monitoring the machine's performance and ensuring proper quality control.






      In conclusion, taphole maintenance machines have become an indispensable part of modern converter operations in the metal - production industry. Their ability to perform taphole drilling and sleeve brick replacement with precision, efficiency, and safety has transformed the way these critical maintenance tasks are carried out. As technology continues to advance, these machines are likely to become even more sophisticated, further enhancing their capabilities and contributing to the overall efficiency and productivity of the steel - making and other metal - production processes.
