CB108
Innovake
SKU108

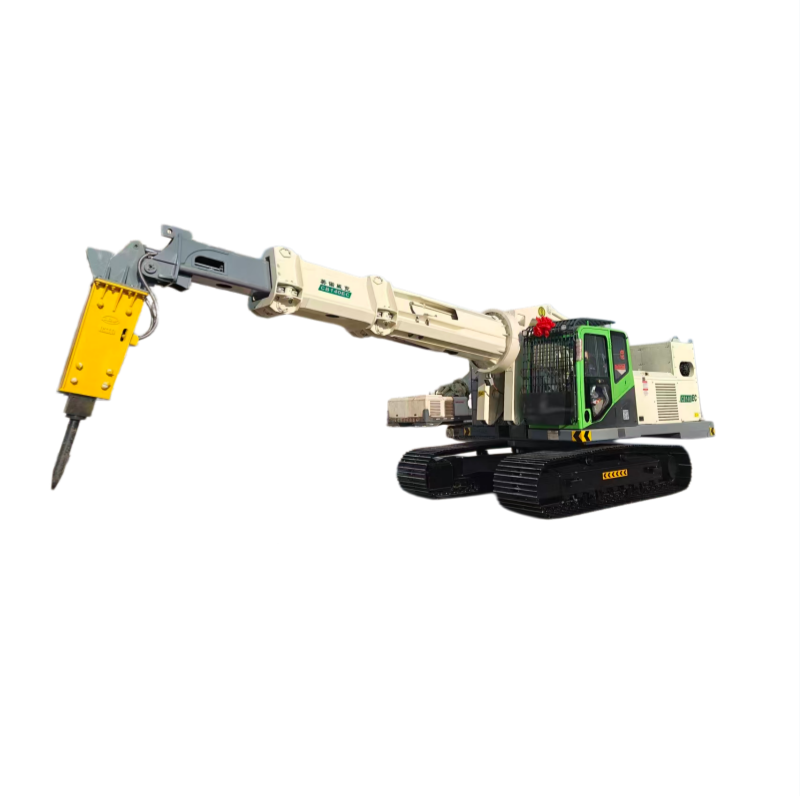

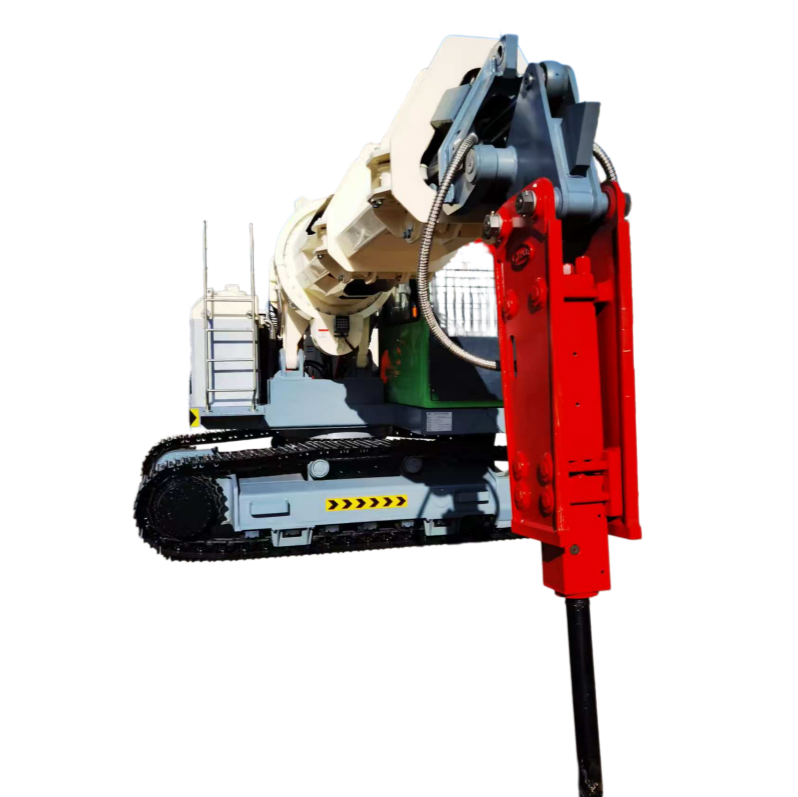

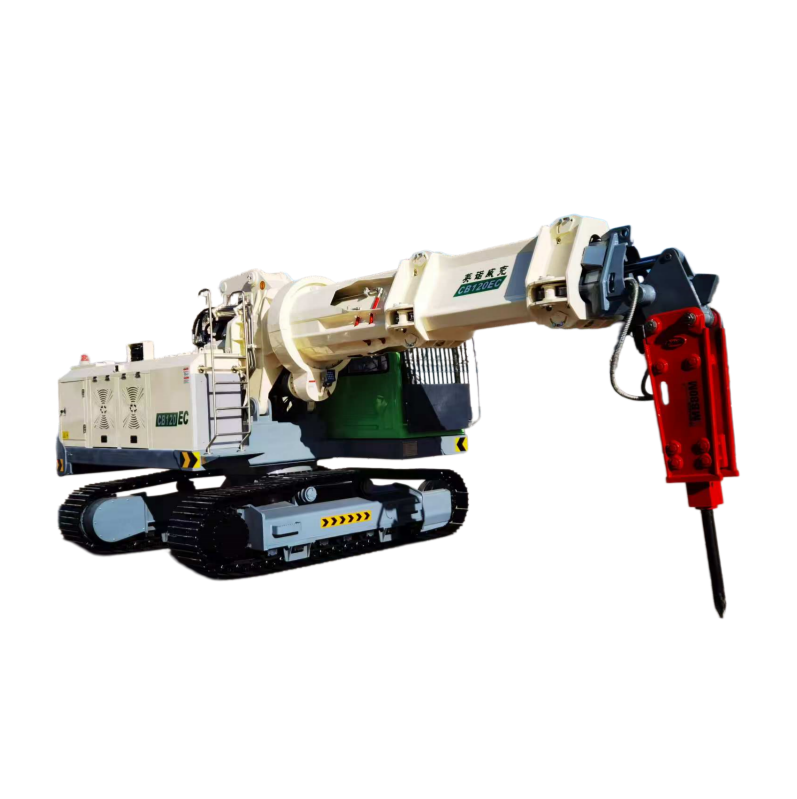

Equipped with multiple attachments such as hydraulic breaker, hook shovel and reaming drill, the converter dismantling machine carries out both hot‑condition and cold‑condition maintenance for converters.
It removes aged magnesia‑carbon bricks, castables and other furnace lining refractories inside the converter to prepare for refractory re‑bricking.
It drills, reams and trims the converter tapping hole, clears built‑up steel and slag around the tapping hole to guarantee smooth steel tapping.
It removes adhered steel slag and skull build‑ups on the furnace mouth, furnace cap and furnace wall under hot conditions to reduce interference to smelting.
Advantages
High Safety: Remote‑control operation keeps personnel away from risks of high temperature, slag splashing and furnace collapse, eliminating high‑risk manual entry into the furnace.
High Maintenance Efficiency: Compared with manual jackhammer operation, working speed is greatly improved. It shortens converter shutdown maintenance time, raises converter availability and increases steel mill output.
Furnace Equipment Protection: Controlled mechanical breaking avoids damage to the furnace shell steel structure caused by violent manual hammering.
Hot‑condition Emergency Repair: It can perform hot slag cleaning and emergency repair under high‑temperature working conditions without waiting for the furnace to cool down completely, minimizing losses from unplanned shutdown.
Technical Specifications:
Parameter | Range |
Telescopic Stroke | 3700 mm |
Working Radius | 11.2 m |
Engine Type | Turbocharged diesel/electric |
Drive Modes | Diesel/Electric/Dual - Hydraulic |
Attachments | Hydraulic hammer, reaming bit, bucket, etc. |
